Description
| Processor |
Intel Xeon E-2236 Processor (3.40GHz up to 4.80GHz, 12M Cache), 6 Core, 12 Threads, 12 MB Intel® Cache, turbo (80W) Max Mem 2666MHz
|
| Memory |
16GB 3200MT/s UDIMM ECC and with ECC Sockets: 4 Maximum RAM: Up to 128GB
|
| Hard Disk |
2 x 1TB 7.2K RPM SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive
|
| Chipset | Intel C242 Chipset |
| Video Memory |
Aspeed AST2510 with 64MB VRAM
|
| RAID Controller |
Support software RAID 0, 1, 10 & 5 Intel Rapid Storage Technology Enterprise (RSTe)
|
| Operating System | Windows Server 2022 Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows Server 2008 R2 SP1 SUSE Enterprise 12 CentOS 7.1 SUSE Destop 12 CentOS 7.2 Ubuntu 14.04 LTS Ubuntu 15.04 LTS Ubuntu 15.10 LTS |
| Chasis | Tower |
| Peripherals |
Standard English USB Keyboard and Mouse (US)
|
| Network | 1 x Intel I210AT |
| Embedded System Management | ASUS Control Center Enterprise |
| Optical Drive | 1 x Slim-type Optical Drive Bay |
| Power Supply and Cable |
300W 80PLUS Single Power Supply, Bronze
Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I |
| Drive Bays |
5 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays*
2 x M.2 (NGFF 22110/2280/2260/2242. One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.) |
| Form Factor | Tower |
| I/O Slots |
Font I/O Ports:
2 x USB 3.0 ports 2 x USB 2.0 ports 1 x Headphone port 1 x Microphone port Rear I/O Ports: 2 x USB 3.1 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA Port (onboard Aspeed AST2510) 2 x LAN Ports 3 x Audio Jacks (onboard Realtek ALC887-VD2 8-Channel High Definition Audio CODEC) 1 x PS/2 Keyboard/ Mouse Port |
| Others |
Expansion Slot:
1 x PCI-E x16 (Gen3 x16 Link) 1 x PCI-E x8 (Gen3 x4 Link) 2 x PCI Storage Option: SATA Controller : Intel C242 Chipset 6 x SATA3 6Gb/s ports + 2 x M.2 connector *1 Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card (Optional) |
| Warranty |
3 Years Full Parts and Service with Local and International Warranty
|

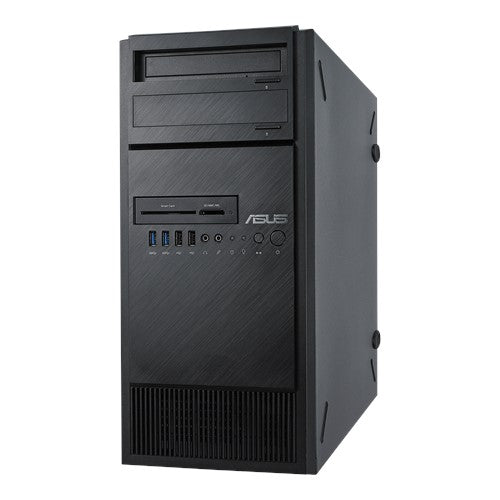

Features of ASUS TS100-E10-PI4 Intel Xeon E-2236 Tower Server
The ASUS TS100-E10-PI4 is a tower server model produced by ASUS. It is designed to provide reliable performance and stability for small to medium-sized businesses. Here are some details about the server:
Processor: The ASUS TS100-E10-PI4 is equipped with an Intel Xeon E-2236 processor. The Xeon E-2236 is a 6-core, 12-thread processor from Intel's Xeon E series. It has a base clock speed of 3.4 GHz and can boost up to 4.8 GHz. The processor supports ECC memory and provides efficient performance for server workloads.
Memory: This server model supports DDR4 memory. It has 4 DIMM slots and can support a maximum of 128 GB of RAM. The exact memory configuration and capacity depend on the specific configuration and the number of DIMMs installed.
Storage: The TS100-E10-PI4 has multiple storage options. It includes four 3.5-inch hot-swappable drive bays for SATA/SAS hard drives or solid-state drives (SSDs). Additionally, it has two M.2 slots that support both SATA and PCIe-based SSDs for fast storage options.
Expansion Slots: The server features three PCIe slots to accommodate expansion cards. These slots provide flexibility to add additional networking cards, RAID controllers, or other peripheral devices to enhance server capabilities.
Networking: The TS100-E10-PI4 comes with dual Gigabit Ethernet ports for network connectivity. These ports allow for fast and reliable data transfer and network communication.
Management and Remote Access: The server includes an integrated ASMB9-iKVM module, which enables remote management and control of the server. This module allows administrators to monitor server health, access the console remotely, and perform various management tasks even if the server is not physically accessible.
Operating System Support: The server supports a variety of operating systems, including Windows Server, Linux, and other compatible server operating systems.
Overall, the ASUS TS100-E10-PI4 is a tower server designed to provide reliable performance and scalability for small to medium-sized businesses. It offers a powerful Intel Xeon processor, flexible storage options, expansion slots, and remote management capabilities, making it suitable for a range of server workloads.
What is the Price of ASUS TS100-E10-PI4 Intel Xeon E-2236 Tower Server in Bangladesh?
The latest price of ASUS TS100-E10-PI4 Intel Xeon E-2236 Tower Server in Bangladesh is 149,000.00 taka. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
