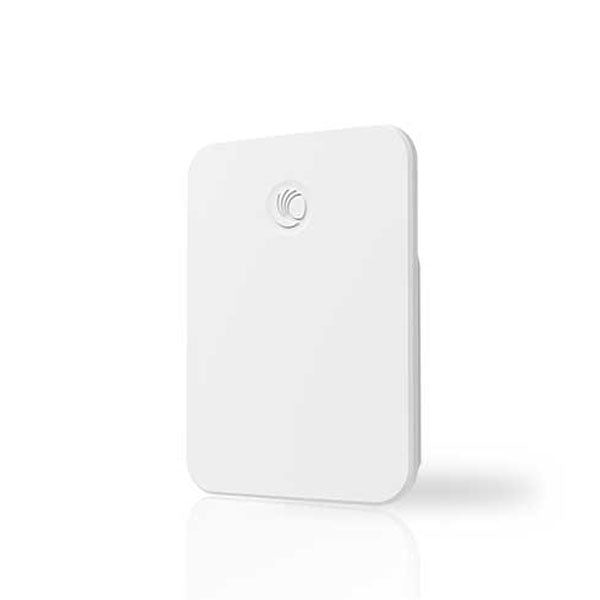

Cambium CnPilot E510 Wi-Fi 5 Outdoor Directional Access Point

Sale price


Ch 1–11, 36–64, 100–140, 149–165
ISED Canada
Ch 1–11, 36–64, 100–116, 149–165
EU-ETSI Ch 1–13, 36–64, 100–140
Ch 1–13, 36–64, 100–144, 149–173
1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2
1 x 2.4 GHz (802.11 b/g/n), 2x2
SU-MIMO / MU-MIMO: 2 streams
Wi-Fi 802.11 a/b/g/n/ac
SSID Security
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 2.4 GHz radio: 400 Mbps
5 GHz radio: 867 Mbps
Ethernet 1 IEEE Gigabit, auto sensing
Max EIRP 2.4 GHz: 32 dBm
5 GHz: 34.5 dBm
WLAN 256 clients, 32 SSIDs (16 per radio)
WPA-TKIP, WPA2 AES, 802.1x,
802.11w PMF
Power 802.3af or 802.3at powered device
Typical load: 10W, Max: 12.95W
Mounting Integrated pole, wall mount
Antenna Internal omni-directional
2.4 GHz: 8 dBi
5 GHz: 9 dB
Ambient Operation Temperature -40ºC to 65ºC
Storage Temperature -40ºC to 70ºC
Humidity 95% RH non-condensing
MTBF 420k hours
Wi-Fi Alliance 80211a/b/g/n/ac,
Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC60950
Dimensions 290 mm x 208 mm x 78 mm
(11.32 in x 8.19 in x 3.07 in)
Weight 1,100 g (2.43 lbs)
LEDs Single Tri-color LED
(amber, blue, green)

Features of Cambium CnPilot E510 Wi-Fi 5 Outdoor Directional Access Point

The Cambium cnPilot E510 is a Wi-Fi 5 (802.11ac) outdoor directional access point designed to provide wireless connectivity in outdoor environments. Here are some key features and characteristics of the Cambium cnPilot E510:

  1. Outdoor Design: The E510 is specifically designed to be installed in outdoor environments. It is built to withstand various weather conditions, making it suitable for deployment in places like outdoor campuses, parks, stadiums, and more.

  2. Wi-Fi 5 (802.11ac): The E510 supports the Wi-Fi 5 standard, also known as 802.11ac. This standard offers improved data rates, higher capacity, and better performance compared to its predecessor, Wi-Fi 4 (802.11n).

  3. Directional Antennas: The "directional" aspect of the access point means that it likely comes equipped with directional antennas. These antennas are designed to focus the Wi-Fi signal in a specific direction, allowing for extended coverage over longer distances. This can be particularly useful when you need to provide connectivity to a specific area or point.

  4. Dual-Band Operation: Wi-Fi 5 devices typically operate in both the 2.4 GHz and 5 GHz frequency bands. This dual-band capability allows for greater flexibility in managing network traffic and avoiding interference.

  5. Power over Ethernet (PoE): The E510 likely supports Power over Ethernet, which means it can be powered using the same Ethernet cable used for data transmission. This simplifies installation, as there's no need to run a separate power cable.

  6. Multiple SSIDs: The access point likely supports the creation of multiple SSIDs (Service Set Identifiers), which allow you to have different virtual networks using the same physical access point. This can be useful for separating guest and internal networks, for example.

  7. Mesh Networking: The E510 might support mesh networking capabilities. This allows multiple access points to work together to create a seamless and extended wireless network coverage area.

  8. Management and Configuration: The access point can be managed and configured through a central management system provided by Cambium. This allows network administrators to remotely monitor and control the access point settings.

  9. Security Features: The E510 likely includes various security features such as WPA/WPA2 encryption, MAC address filtering, and possibly even more advanced security measures to protect the network from unauthorized access.

What is the Price of Cambium CnPilot E510 Wi-Fi 5 Outdoor Directional Access Point in Bangladesh?

To know the latest price of Cambium CnPilot E510 Wi-Fi 5 Outdoor Directional Access Point in Bangladesh contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in BD.
