Description
| Dimensions (L x W x H ) |
1.73 x 17.70 x 9.52 in (4.4 x 45.0 x 24.2 cm)
|
| Interface |
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
| LED |
Per-port status: Link integrity, disabled, activity, speed, and full duplexSystem status, Port Status, RPS, link duplex, and link speed
|
| Power Supply | 110-240VAC, 50-60 Hz |
| Weight | 8 lb (3.6 Kg) |
| Type | LAN Lite |
| Port | 24 ports: RJ-45 connectors |
| Network Standard |
IEEE 802.1D Spanning Tree ProtocolIEEE 802.1p CoS PrioritizationIEEE 802.1Q VLANIEEE 802.1sIEEE 802.1wIEEE 802.1XIEEE 802.1ab (LLDP)IEEE 802.3adIEEE 802.3afIEEE 802.3ah (100BASE-X single/multimode fiber only)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T portsIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-XRMON I and II standardsSNMP v1, v2c, and v3
|
| Data Transmission Rate | Switching capacity: : 16 Gbps |
| Environment |
Operating temperature up to 5000 ft (1500 m)
23º to 113ºF (-5º to 45ºC) Operating temperature up to 10,000 ft (3000 m) 23º to 104ºF (-5º to 40ºC) Short-term exception at sea level* 23º to 131ºF (-5º to 55ºC) Short-term exception up to 5000 feet (1500 m)* 23º to 122ºF (-5º to 50ºC) Short-term exception up to 10,000 feet (3000 m)* 23º to 113ºF (-5º to 45ºC) Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF (-5º to 40ºC) Storage temperature up to 15,000 feet (4573 m) 23º to 158ºF (-25º to 70ºC) Operating altitude Up to 10,000 Feet (Up to 3,000 Meters) Storage altitude Up to 13,000 Feet (Up to 4,000 Meters) Operating relative humidity 10% to 95% noncondensing Storage relative humidity 10% to 95% noncondensing Sound Pressure, dBA Typical, LpAm: 33 Maximum, LpAD: 36 Sound Power, dbA Typical, LwA: 43 Maximum, LwAD: 46 MTBF in thousands of hours 667 |
| Warranty | 1 Year Warranty |

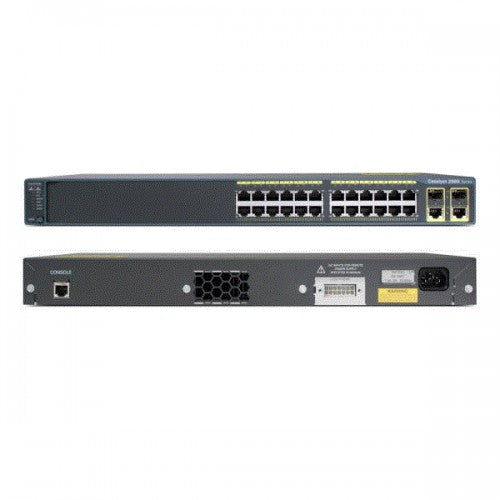

Features of Cisco Catalyst 2960 Plus 24 Port LAN Switch
The Cisco Catalyst 2960 Plus is a 24-port LAN switch designed for small to medium-sized networks. Here are some key features and specifications of the Cisco Catalyst 2960 Plus 24-port switch:
-
Port Configuration: The switch has 24 Ethernet ports, which are typically 10/100 Mbps Fast Ethernet ports. Additionally, it may have a couple of Gigabit Ethernet ports for uplink connections.
-
LAN Connectivity: The switch provides high-performance LAN connectivity for devices within your network. It supports features such as auto-negotiation and auto-MDIX, which simplify the connection process and ensure compatibility with various devices.
-
PoE Support: Some models of the Cisco Catalyst 2960 Plus switches also offer Power over Ethernet (PoE) functionality. This allows you to power PoE-enabled devices, such as IP phones, wireless access points, and IP cameras, directly through the switch ports.
-
Management: The Cisco Catalyst 2960 Plus switch is a managed device, allowing you to configure and monitor the switch settings for optimal network performance. It supports features like VLANs, Quality of Service (QoS), Spanning Tree Protocol (STP), and Link Aggregation (LAG).
-
Enhanced Security: The switch offers security features like Access Control Lists (ACLs), DHCP Snooping, and Dynamic ARP Inspection to protect your network from unauthorized access, DHCP attacks, and ARP spoofing.
-
Easy Deployment: The Cisco Catalyst 2960 Plus switch is easy to deploy and manage. It supports features like Cisco Smart Install and Cisco Auto Smartports, which simplify the initial configuration and help automate common tasks.
-
Energy Efficiency: The switch incorporates energy-saving features like Cisco EnergyWise technology, which enables power management and reduces power consumption during periods of low network activity.
-
Rack-Mountable Design: The switch is designed to be rack-mounted and fits into a standard 19-inch rack. It comes with mounting brackets for easy installation.
-
Scalability: The Cisco Catalyst 2960 Plus switches can be stacked using Cisco FlexStack technology. Stacking allows you to manage multiple switches as a single entity, simplifying configuration and providing scalability for your network.
What is the price of Cisco Catalyst 2960 Plus 24 Port LAN Switch in Bangladesh?
To know the latest price of Cisco Catalyst 2960 Plus 24 Port LAN Switch in Bangladesh contact with us. To buy this switch please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
