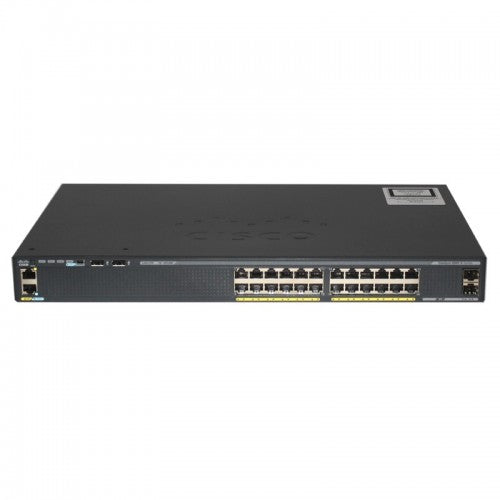

Cisco Catalyst 2960-X 24 Port LAN Lite Switch

Sale price


Type LAN Lite
24 x 10/100/1000 + 2 x 1G SFP
Network Standard
IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax
Data Transmission Rate
Switching capacity: 68.5Mpps
Operating temperature up to 5000 ft (1500 m)
23ºF to 113º

Operating temperature up to 10,000 ft (3000 m)
23ºF to 104ºF

Short-term exception at sea level*
23ºF to 131ºF

Short-term exception up to 5000 feet (1500 m)*
23ºF to 122ºF

Short-term exception up to 10,000 feet (3000 m)*
23ºF to 113ºF

Short-term exception up to 13,000 feet (4000 m)*
23º to 104ºF

Storage temperature up to 15,000 feet (4573 m)
-13º to 158ºF

Operating altitude
Up to 10,000 feet

Storage altitude
Up to 13,000 feet

Operating relative humidity
10% to 95% noncondensing

Storage relative humidity
10% to 95% noncondensing
10/100 Mbps Ethernet (RJ-45)
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Power Supply
110-240VAC, 50-60 Hz
Dimensions (L x W x H)
44.5 x 27.9 x 4.5 cm
Weight 3.7Kg

Features of Cisco Catalyst 2960-X 24 Port LAN Lite Switch

The Cisco Catalyst 2960-X 24 Port LAN Lite Switch is a reliable choice for enterprise-class access in both campus and branch applications. Let’s explore its key features:

  1. Port Configuration:

    • It offers 24 Gigabit Ethernet ports with line-rate forwarding performance. These ports allow you to connect devices within your network efficiently.
  2. Uplinks:

    • The switch includes 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks. These uplinks provide high-speed connectivity to other switches or network devices.
  3. Power over Ethernet (PoE+) Support:

    • The switch supports PoE+, allowing you to power compatible devices (such as IP phones, wireless access points, or security cameras) directly through the Ethernet cables. The power budget for PoE+ can go up to 740W.
  4. Software Options:

    •  The choice of software depends on your specific requirements and features needed.
  5. Device Management:

    • You can manage the switch using various methods, including:
      • Web UI: An intuitive web-based interface.
      • Bluetooth Over-the-Air Access: Convenient for device management.
      • Command-Line Interface (CLI): For advanced configuration.
      • Simple Network Management Protocol (SNMP): Monitoring and control.
      • RJ-45 or USB Console Access: Direct access for troubleshooting.
  6. Network Management:

    • Utilize tools such as Cisco Prime, Cisco Network Plug and Play, and Cisco DNA Center for efficient network management.
  7. Scalability and Stacking:

    • The switch supports stacking with FlexStack-Plus and FlexStack-Extended, allowing you to expand your network seamlessly.
  8. Layer 3 Features:

    • It provides routed access with features like Open Shortest Path First (OSPF), static routing, and Routing Information Protocol (RIP).
  9. Visibility and Security:

    • Gain visibility through Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow.
    • Enhance security with features like 802.1X, Serial Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.
  10. Reliability and Resiliency:

    • The switch boasts a higher Mean Time Between Failures (MTBF) and comes with an Enhanced Limited Lifetime Warranty (E-LLW).
    • Optional dual field-replaceable power supplies enhance resiliency.
