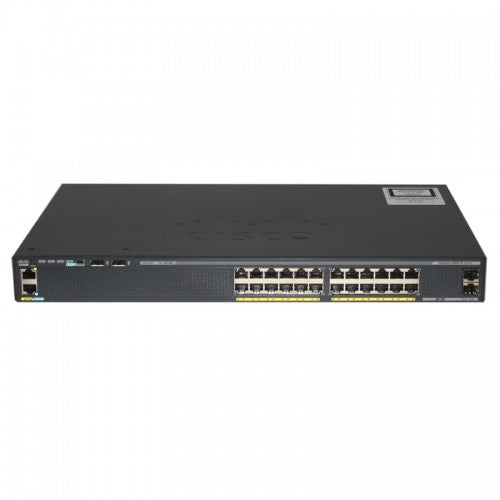

Cisco Catalyst 2960-X 24 Port LAN Switch

Save 100%

Price:
Sale price Regular price

Description

Dimensions (L x W x H ) 44.5 x 27.9 x 4.5 cm
Interface 10/100 Mbps Ethernet (RJ-45)
LED
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Power Supply 110-240VAC, 50-60 Hz
Weight 3.7Kg
Type LAN
Port 24 x 10/100/1000 + 2 x 1G SFP
Network Standard
IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax
Data Transmission Rate Switching capacity: 68.5Mpps
Environment
Operating temperature up to 5000 ft (1500 m)
23ºF to 113º

Operating temperature up to 10,000 ft (3000 m)
23ºF to 104ºF

Short-term exception at sea level*
23ºF to 131ºF

Short-term exception up to 5000 feet (1500 m)*
23ºF to 122ºF

Short-term exception up to 10,000 feet (3000 m)*
23ºF to 113ºF

Short-term exception up to 13,000 feet (4000 m)*
23º to 104ºF

Storage temperature up to 15,000 feet (4573 m)
-13º to 158ºF

Operating altitude
Up to 10,000 feet

Storage altitude
Up to 13,000 feet

Operating relative humidity
10% to 95% noncondensing

Storage relative humidity
10% to 95% noncondensing
Warranty 1 Year Warranty

Features of Cisco Catalyst 2960-X 24 Port LAN Switch

The Cisco Catalyst 2960-X is a popular series of LAN switches designed for small to medium-sized networks. It offers reliable performance, security features, and scalability. Specifically, the Cisco Catalyst 2960-X 24 Port LAN Switch is a member of this series and provides 24 Ethernet ports for connecting devices to the network.

Here are some key features and capabilities of the Cisco Catalyst 2960-X 24 Port LAN Switch:

  1. Port density: It has 24 Ethernet ports, which can be used to connect a variety of devices such as computers, servers, IP phones, printers, and access points.

  2. Power over Ethernet (PoE): Some models in the Cisco Catalyst 2960-X series support PoE, which allows the switch to provide power to connected devices over the Ethernet cables. This feature is useful for devices that require power but don't have a separate power source.

  3. Gigabit Ethernet: The switch offers Gigabit Ethernet connectivity, providing high-speed data transfer rates of up to 1 Gbps per port. This allows for fast and efficient communication within the network.

  4. VLAN support: It supports Virtual Local Area Networks (VLANs), which allow you to segment the network into logical groups for improved security, management, and performance.

  5. Quality of Service (QoS): The switch provides QoS features that prioritize certain types of network traffic, ensuring critical applications or services receive the necessary bandwidth and latency requirements.

  6. Security features: The Catalyst 2960-X series includes various security mechanisms to protect the network, such as Access Control Lists (ACLs), Secure Shell (SSH) Protocol, and MAC address-based port security.

  7. Easy deployment and management: Cisco Catalyst switches are known for their user-friendly interfaces and robust management options. They can be configured and managed through a command-line interface (CLI), web-based GUI, or Cisco Network Assistant software.

  8. Stacking capabilities: The Catalyst 2960-X switches support stacking, allowing multiple switches to be interconnected and managed as a single logical unit. This simplifies network administration and provides redundancy and scalability.

What is the price of Cisco Catalyst 2960-X 24 Port LAN Switch in Bangladesh?

To know the latest price of Cisco Catalyst 2960-X 24 Port LAN Switch in Bangladesh contact with us. To buy this switch please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
