Cisco Nexus 9332D-GX2B Switch

Sale price


Physical 32-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports
Buffer: 120MB
System memory: 32 GB
SSD: 128GB
USB: 1 port
RS-232 serial console ports: 1
Management ports: 2
(1 x10/100/1000BASE-T and 1 x 1-Gbps SFP)
CPU: 4 cores
Power and cooling Power: 1500W AC
Input voltage: 100 to 240V AC
Hot-swappable, 6 fans, 5+1 redundancy
Frequency: 50 to 60 Hz (AC)
Efficiency: 90% or greater
(20 to 100% load)
Port-side intake and exhaust
Typical power: 638 W
Maximum power: 1442 W
Environmental Physical (H x W x D):
1.72 x 17.3x 23.9 in.
(4.4 x 43.9 x 60.8 cm).
Acoustics: 71.1 dBA at 50% fan speed, 81.2 dBA at 70% fan speed, and 88 dBA at 100% fan speed
Operating temperature:
32 to 104°F (0 to 40°C) with port-side intake
32 to 82°F (0 to 28°C) with port-side exhaust
Nonoperating (storage) temperature: –40 to 158°F
(–40 to70°C)
Humidity: 5 to 85% (noncondensing)
Altitude: 0 to 13,123 ft
(0 to 4000m)
Mean Time Between Failure (MTBF): 211,310 hours
ACI spine Yes
ACI leaf Yes

Features of Cisco Nexus 9332D-GX2B Switch

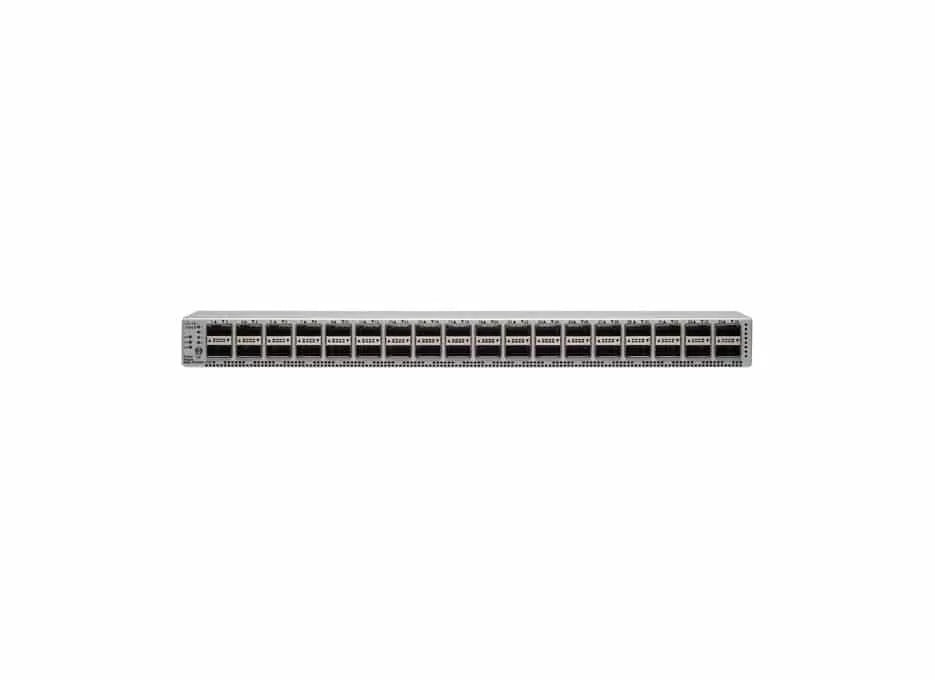

The Cisco Nexus 9332D-GX2B is a compact form-factor 1-Rack-Unit (1RU) switch designed for deployment in data centers. Here are the key features of this switch:

Bandwidth and Ports:
Supports 25.6 Tbps of bandwidth.
Equipped with 32 fixed 400G QSFP-DD ports and two fixed 1/10G SFP+ ports.
Breakout is supported on all ports, allowing for up to 128 ports of 10/25/50/100 Gbps or 64 ports of 200 Gbps.
Backward Compatibility:
The QSFP-DD ports also support native 200G (QSFP56), 100G (QSFP28), and 40G (QSFP+).
Each port can also support various breakouts, including 4x10G, 4x25G, 4x50G, 4x100G, and 2x200G.
Compact Design:
The switch is designed to fit in a 1RU form factor, making it space-efficient.
Ideal for use as a spine switch in massive scale-out fabrics.
Additional Ports:
Includes two fixed 1/10G SFP+ ports for connectivity.
Management ports consist of one 10/100/1000BASE-T port and one SFP port.
Also features a console port (RS-232) and a USB port

What is the price of Cisco Nexus 9332D-GX2B Switch in Bangladesh?

To know the latest price of Cisco Nexus 9332D-GX2B Switch in BD contact with us . To buy this  please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
