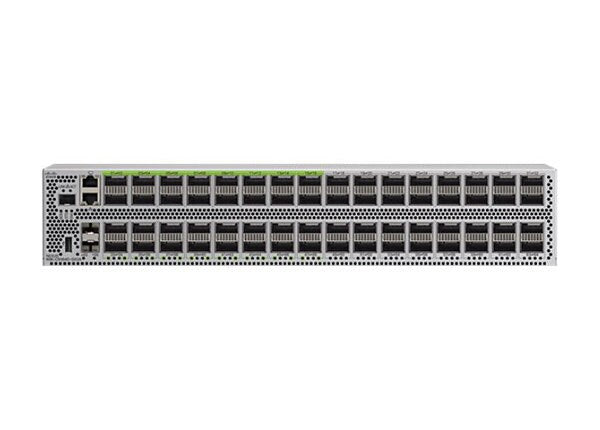

Cisco Nexus 9364D-GX2A Switch

Sale price


Physical 64-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports
Buffer: 120MB
System memory: 32GB
SSD: 128GB
USB: 1 port
RS-232 serial console ports: 1
Management ports: 2
(1 x10/100/1000BASE-T and
1 x1-Gbps SFP)
CPU: 6 cores
Power and cooling Power: 3200W AC
Input voltage: 100 to 240V AC
Hot-swappable, 4 fans, 3+1 redundancy
Frequency: 50 to 60 Hz (AC)
Efficiency: 90% or greater
(20 to 100% load)
Port-side intake
Typical power: 1324 W
Maximum power: 3000 W
Environmental Physical (H x W x D): 3.45 x17.3 x 29.78 in. (8.76 x 43.94x 75.65 cm)
Acoustics: 78 dBA at 50% fan speed, 86.4 dBA at 70% fan speed, and 95.2 dBA at 100% fan speed
Operating temperature: 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C)
Humidity: 5 to 95% (noncondensing)
Altitude: 0 to 13,123 ft (0 to 4000m)
Mean Time Between Failure (MTBF): 216,590 hours
ACI spine Yes
ACI leaf Yes

Features of Cisco Nexus 9364D-GX2A Switch

The Cisco Nexus 9364D-GX2A is a powerful switch designed for high-performance data center fabrics. Here are its key features:

Bandwidth and Ports:
It supports 64 fixed 400G QSFP-DD ports and two fixed 1/10G SFP+ ports.
The 400G QSFP-DD ports also support native 200G (QSFP56), 100G (QSFP28), and 40G (QSFP+).
Each port can also handle breakouts, such as 4x10G, 4x25G, 4x50G, 4x100G, and 2x200G configurations.
The first 16 ports (marked in green) are capable of wire-rate MACsec encryption.
This switch is best suited for massive scale-out fabrics as a compact, high-density spine.
Backward Compatibility:
The platform is built with a backward-compatible 400G optical interface using Quad Small Form-Factor Pluggable–Double Density (QSFP-DD).
It allows transparent migration from existing data center fabrics at 40-Gbps and 100-Gbps speeds to 400 Gbps.
Modes of Operation:
Organizations can deploy the Cisco Nexus 9364D-GX2A in either Cisco Application Centric Infrastructure (Cisco ACI) mode or Cisco NX-OS mode.
Scalability and Low Latency:
The switch supports 51.2 Tbps of bandwidth and 8.35 billion packets per second (bpps).
It provides massive scalability and ultra-low latency for high-performance data center fabrics.
Compact Form Factor:
The Cisco Nexus 9364D-GX2A is a 2-Rack-Unit (2RU) switch, making it space-efficient.

What is the price of Cisco Nexus 9364D-GX2A Switch in Bangladesh?

To know the latest price of Cisco Nexus 9364D-GX2A Switch BD contact with us . To buy this  please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
