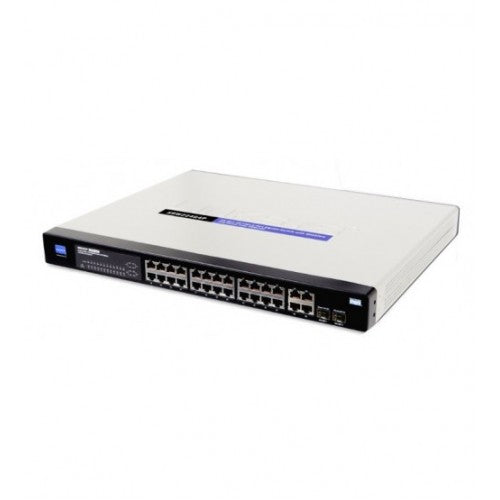

Cisco SF300-24P 24-Port 10/100 PoE Managed Switch

Sale price


Device Type Switch - 24 ports - L2- managed
Enclosure Type Desktop, rack-mountable - 1U
Ports 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE) N/A
Performance Switching capacity : 12.8 Gbps ? Forwarding performance (64-byte packet size) : 9.52 Mpps
MAC Address Table Size 16K entries
Capacity 4K Active VLANs
Routing Protocol Static IPv4 routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Jumbo Frame Support 10KB
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 128 MB
Flash Memory 16 MB flash
Status Indicators Link activity, port transmission speed, system
Interfaces 24 x 10Base-T/100Base-TX - RJ-45 ? 1 x console - 9 pin D-Sub (DB-9) - management ? 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ? 2 x SFP (mini-GBIC)
Power Device Power adapter - external
Voltage Required AC 120/230 V ( 50/60 Hz )
Width 17.3 in
Depth 10.1 in
Height 1.5 in
Weight 6.8 lbs
Cables Included 1 x serial cable
Rack Mounting Kit Included
MTBF 282,775 hour(s)
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
1 Year Warranty

Features of Cisco SF300-24P 24-Port 10/100 PoE Managed Switch

The Cisco SF300-24P is a 24-port managed switch that supports Power over Ethernet (PoE) technology. Here are some key features and specifications of the Cisco SF300-24P:

  1. Port Configuration: It has 24 Ethernet ports that support both 10/100 Mbps speeds. All of these ports are PoE-enabled, which means they can provide power to PoE-compatible devices such as IP phones, wireless access points, and IP cameras.

  2. Power over Ethernet (PoE): The SF300-24P supports the IEEE 802.3af PoE standard, which provides up to 15.4 watts of power per port. It can deliver power to connected devices over Ethernet cables, eliminating the need for separate power adapters or power injectors.

  3. Switching Capacity and Performance: The switch has a switching capacity of 12.8 Gbps, allowing for high-speed data transfer between connected devices. It also supports Quality of Service (QoS) features to prioritize network traffic and ensure optimal performance for critical applications.

  4. VLAN Support: The SF300-24P supports Virtual LANs (VLANs), allowing you to create multiple logical networks within a single physical switch. VLANs can help improve network security, manage broadcast traffic, and enhance network segmentation.

  5. Management and Security: The switch offers a web-based management interface that allows you to configure and monitor the switch settings. It also supports SNMP (Simple Network Management Protocol) for centralized management and monitoring. Additionally, it includes security features such as Access Control Lists (ACLs) and port security to protect against unauthorized access.

  6. Layer 2 Features: The switch supports various Layer 2 features such as Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Link Aggregation Control Protocol (LACP). These features help improve network redundancy, provide link aggregation for increased bandwidth, and prevent network loops.

  7. Energy-Efficient Design: The Cisco SF300-24P incorporates energy-saving features such as Energy-Efficient Ethernet (EEE) and automatic power shutoff on inactive ports, helping to reduce power consumption and operating costs.

What is the price of Cisco SF300-24P 24-Port 10/100 PoE Managed Switch in Bangladesh?

To know the latest price of Cisco SF300-24P 24-Port 10/100 PoE Managed Switch in Bangladesh contact with us. To buy this switch please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
