Description
| Dimensions (L x W x H ) | |
| Interface |
Frame sizes up to 9K (9216) bytes supported on 10/100 and Gigabit interfaces
Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface. Wire-speed routing of IPv4 packets Up to 1K static routes and up to 128 IP interfaces |
| LED |
The system, Link/Act, PoE, Speed, LED power saving option
|
| Power Supply | 100-240V 50-60 Hz |
| Weight | 4.08 kg (8.99 lb) |
| Type | PoE + Managed Switch |
| Port |
24 10/100 PoE+ ports with a 185W power budget
2 Gigabit copper/SFP combo + 2 SFP ports |
| Network Standard |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X
|
| Advanced Functions |
Power over Ethernet (PoE):
Power Dedicated to PoE- 185W Number of Ports That Support PoE- 24 |
| Data Transmission Rate |
24 10/100 PoE+ ports with a 375W power budget
2 Gigabit copper/SFP combo + 2 SFP ports |
| MAC Address Table | Up to 16K (16384) |
| Environment |
Operating temperature:
32° to 113°F (0° to 45°C) Storage temperature: –4° to 158°F (–20° to 70°C) Operating humidity: 10% to 90%, relative, noncondensing Storage humidity: 10% to 90%, relative, noncondensing |
| Warranty | 1 Year Warranty |

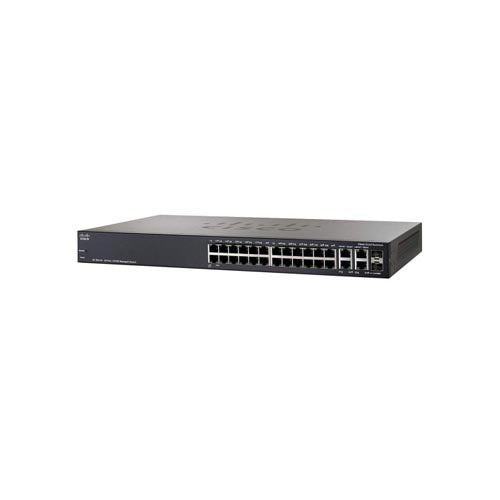

Features of Cisco SF350-24P 24-Port 10/100Mbps POE Managed Switch
The Cisco SF350-24P is a 24-port managed switch that supports Power over Ethernet (PoE) functionality. Here are some key features and specifications of the Cisco SF350-24P switch:
-
Port Configuration: The switch has 24 10/100Mbps Ethernet ports. Each port supports both data and PoE, which allows you to connect and power PoE-enabled devices such as IP phones, wireless access points, and IP cameras.
-
Power over Ethernet: The switch provides PoE capability according to the IEEE 802.3af and 802.3at standards. This means it can deliver up to 15.4 watts of power per port with 802.3af or up to 30 watts with 802.3at, allowing you to power a wide range of PoE devices.
-
PoE Budget: The SF350-24P has a maximum PoE budget of 180W, which means you need to ensure that the total power required by the connected PoE devices does not exceed this limit.
-
Management: The switch is a managed device, which gives you more control and flexibility over your network. It supports features such as VLANs, Quality of Service (QoS), Spanning Tree Protocol (STP), and Link Aggregation (LAG) to optimize network performance and manage traffic.
-
Web-Based Management Interface: The SF350-24P can be managed through a web-based graphical user interface (GUI). This interface provides an intuitive way to configure and monitor the switch settings, including VLANs, port settings, and PoE management.
-
Security Features: The switch offers security features like Access Control Lists (ACLs), port security, and 802.1X authentication to help protect your network from unauthorized access.
-
Energy Efficiency: The SF350-24P incorporates energy-saving features such as Energy Efficient Ethernet (EEE) and the ability to automatically power down unused ports, helping to reduce power consumption and lower operating costs.
-
Rack-Mountable Design: The switch is designed to be rack-mounted and fits into a standard 19-inch rack. It comes with mounting brackets for easy installation.
-
Fanless Design: The SF350-24P features a fanless design, which means it operates silently and is suitable for noise-sensitive environments.
