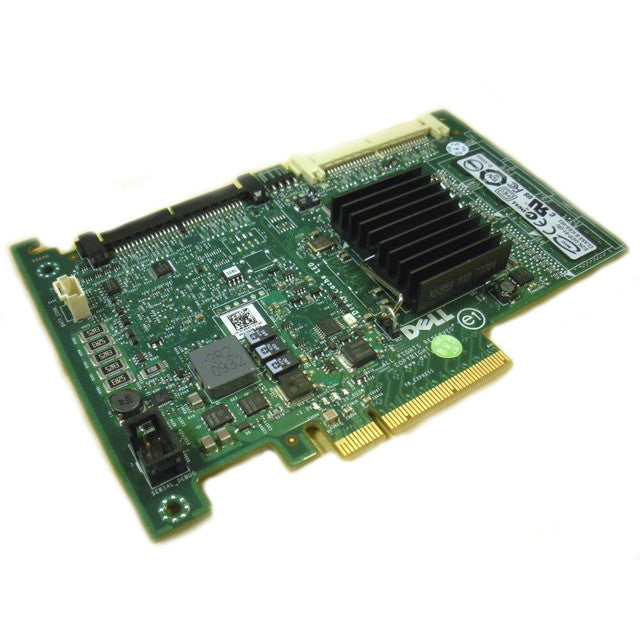

Dell H726F PERC 6/i SAS RAID Controller


Price:
Sale price

Description

Product Name
Dell H726F PERC 6/i SAS RAID Controller
RAID Levels Supported
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Interface SAS (Serial Attached SCSI)
Data Transfer Rate 3Gb/s (SAS)
Cache Memory
256MB DDR2 SDRAM (expandable up to 512MB with BBU)
Battery Backup Unit (BBU)
Supported (optional for cached RAID levels)
Drive Support SAS and SATA hard drives
Disk Interface Support
SAS (Serial Attached SCSI) and SATA (Serial ATA)
Max Number of Supported Drives Up to 8 SAS/SATA drives
RAID Management Software
Dell OpenManage Server Administrator (OMSA)
Supported Operating Systems Windows, Linux, VMware
Hot-Swappable Components
Drives, fans, and battery modules (with BBU)
RAID Monitoring and Management
Web-based GUI and Command Line Interface (CLI)
Online Capacity Expansion (OCE) Supported
Online RAID Level Migration (RLM) Supported
S.M.A.R.T. Support Yes
Enclosure Management
Yes, with compatible Dell PowerEdge servers
Physical Dimensions Standard PCIe card form factor
Compatibility
Designed for Dell PowerEdge 11th generation servers
Dell Part Number H726F or 0H726F

Features of Dell H726F PERC 6/i SAS RAID Controller

The Dell H726F PERC 6/i SAS RAID (Redundant Array of Independent Disks) Controller is a hardware component designed to manage and facilitate data storage in Dell PowerEdge servers and some other compatible Dell systems. The "PERC" in its name stands for "PowerEdge RAID Controller." RAID controllers are used to group multiple physical hard drives into arrays to enhance data redundancy, performance, or a combination of both.

Here are some key features and specifications of the Dell H726F PERC 6/i SAS RAID Controller:

  1. Interface: The PERC 6/i controller uses the SAS (Serial Attached SCSI) interface, which provides faster data transfer rates and better reliability compared to older technologies like Parallel SCSI.

  2. RAID Levels Supported: The PERC 6/i supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. These different RAID configurations offer different levels of performance, data redundancy, and capacity.

  3. Cache Memory: The controller comes with a built-in cache memory (battery-backed cache or BBU) that helps in improving read and write performance. The cache memory can protect data in case of a power failure or system crash.

  4. Disk Support: The PERC 6/i SAS RAID Controller supports both SAS and SATA (Serial ATA) hard drives, providing flexibility in drive selection.

  5. Dell Compatibility: This controller is typically compatible with Dell PowerEdge servers and certain Dell Precision workstation models. Compatibility may vary depending on the specific server model and firmware versions.

What is the price of Dell H726F PERC 6/i SAS RAID Controller in Bangladesh?

To know the latest price of Dell H726F PERC 6/i SAS RAID Controller in BD contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
