Description
| Model Number |

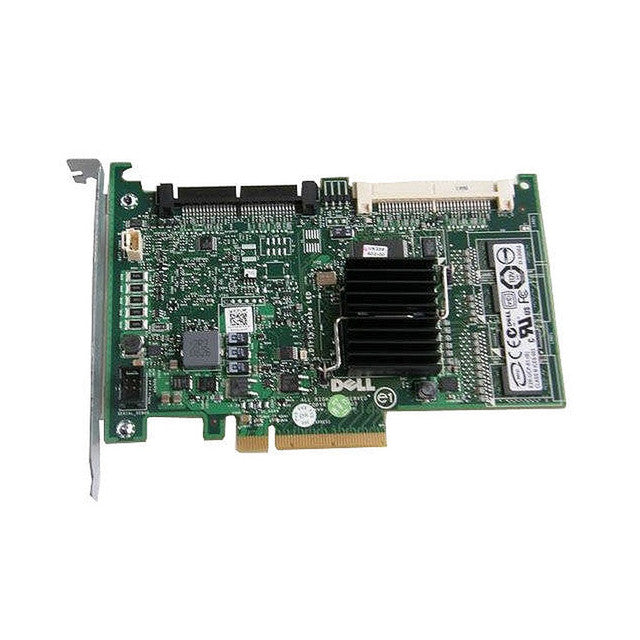

Dell PowerEdge PERC 6/i SAS RAID Controller Adapter Card PCI-E YW946
|
| Interface Type | PCI Express (PCI-E) |
| RAID Levels Supported |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
|
| SAS Connector Type | SAS (Serial Attached SCSI) |
| Data Transfer Rate | Up to 3Gb/s per SAS channel |
| Cache Memory |
256MB or 512MB DDR2 (Depends on the specific model)
|
| Battery Backup Unit (BBU) |
Supported (Optional - provides cache memory protection)
|
| Drive Compatibility |
SAS (Serial Attached SCSI) and SATA (Serial ATA)
|
| Drive Support |
Supports up to 32 drives (depending on the server model and configuration)
|
| RAID Management Software |
Dell OpenManage Server Administrator (OMSA)
|
| RAID Support |
Hardware RAID with dedicated processor
|
| Hot-Swappable Drives | Yes |
| Operating System Support |
Compatible with various Windows and Linux operating systems
|
| Virtual Disk Spanning | Yes |
| Online Capacity Expansion (OCE) | Supported |
| Online RAID Level Migration (RLM) | Supported |
| Drive Patrol and Consistency Check (Patrol Read) | Supported |
| S.M.A.R.T. Support |
Yes (Self-Monitoring, Analysis, and Reporting Technology)
|
| Management Ports |
1 x SAS Connector for internal drives
|
|
1 x SAS Connector for external devices (if supported by server model)
|
Features of Dell PowerEdge PERC 6/i SAS RAID Controller Adapter Card PCI-E YW946
The Dell PowerEdge PERC 6/i SAS RAID Controller Adapter Card with part number PCI-E YW946 is a RAID controller designed for Dell PowerEdge servers. It is a hardware component that provides RAID (Redundant Array of Independent Disks) functionality to manage multiple hard drives or solid-state drives in a server for improved data redundancy, performance, and fault tolerance.
Key features of the PERC 6/i SAS RAID Controller include:
-
RAID support: It supports various RAID levels, such as RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. These RAID levels offer different combinations of data striping, mirroring, and parity for improved performance and data protection.
-
SAS (Serial Attached SCSI) support: The controller uses SAS technology to connect to the storage devices. SAS is a high-speed interface that allows for faster data transfer rates and better reliability compared to SATA (Serial ATA).
-
Battery backup unit (BBU): Some versions of the PERC 6/i may come with a BBU. The BBU provides power to the RAID controller cache memory, allowing the controller to save cached data to the disk in the event of a power failure. This helps prevent data loss and improves data integrity.
-
PCI-Express interface: The card uses the PCI Express (PCI-E) interface, which provides high-speed data transfer between the RAID controller and the server's motherboard.
What is the price of Dell PowerEdge PERC 6/i SAS RAID Controller Adapter Card PCI-E YW946 in Bangladesh?
To know the latest price of Dell PowerEdge PERC 6/i SAS RAID Controller Adapter Card PCI-E YW946 in BD contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
