Description
| Processor |
Intel® Xeon® Gold 6448Y 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (225W) DDR5-4800
|
| Chassis Type |
2.5" Chassis with up to 16 SAS/SATA/NVMe Drives
|
| Memory |
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
|
|
HardDisk
|
2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
|
|
6X 1.92TB SSD vSAS Read Intensive 12Gbps 512e 2.5in Hot-Plug ,AG Drive SED, 1DWPD
|
|
| Raid Controller | PERC H755 with rear load Brackets |
| Network Card |
Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0
|
| Embedded Systems Management | iDRAC9, Enterprise 16G |
| Power Supply |
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
|
| PCIe Riser |
Riser Config 2, 2x8 FH Slots (Gen4), 4x8 FH Slots (Gen5), 2x16 LP Slots (Gen4)
|
| Warranty | 3 years ProSupport |

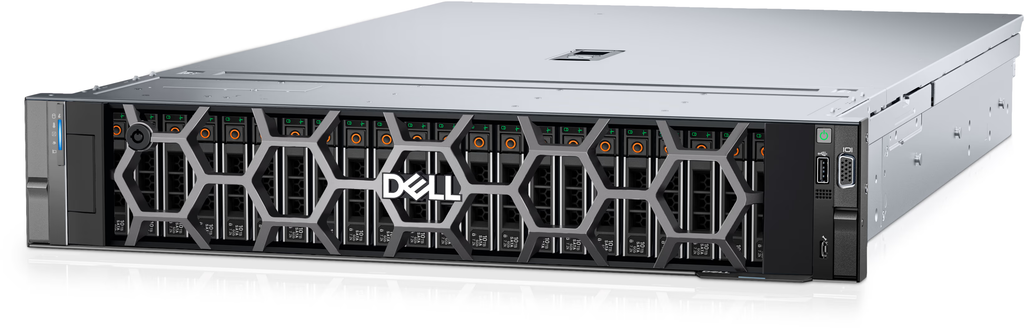

Features of Dell PowerEdge R760 (2X32 Core Gold) Rack Server
The Dell PowerEdge R760 with 2x Intel Xeon Gold 32-core processors is a high-performance server designed for intensive workloads, virtualization, and large-scale applications. Here are its key features:
Processor
- CPU: 2x Intel Xeon Gold processors
- Cores per CPU: 32 cores
- Threads per CPU: 64 threads
- Base Clock Speed: Varies by specific Xeon Gold model, typically around 2.0 GHz
- Max Turbo Frequency: Varies by specific Xeon Gold model, typically up to 3.7 GHz
- Cache: Varies by specific Xeon Gold model, typically around 48 MB
Memory
- Memory Capacity: Up to 8TB of DDR4 RAM
- Memory Slots: 32 DIMM slots
- Memory Type: DDR4 RDIMM/LRDIMM
- Memory Speed: Up to 3200 MT/s
Storage
- Drive Bays: Up to 24 x 2.5” or 12 x 3.5” hot-plug SAS/SATA (HDD/SSD) + up to 4 x NVMe drives
- Storage Controllers: PERC H745 RAID controller, or optional software RAID (S140)
Networking
- Integrated Network: Dual 1GbE LOM, with options for 10GbE or 25GbE network cards
Expansion Slots
- PCIe Slots: Up to 8 x PCIe Gen4 slots
Management
- Integrated Management: iDRAC9 with Lifecycle Controller
- Security Features: TPM 2.0, Secure Boot, Secure Erase
Power Supply
- PSU Options: Redundant power supply options with varying wattages, including 550W, 750W, 1100W, and 1600W
Additional Features
- Form Factor: 2U rack server
- Cooling: High-efficiency fans and adaptive cooling technology
- Operating System Support: VMware ESXi, Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and more
What is the Price of Dell PowerEdge R760 (2X32 Core Gold) Rack Server in Bangladesh?
To know the latest price of Dell PowerEdge R760 (2X32 Core Gold) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
