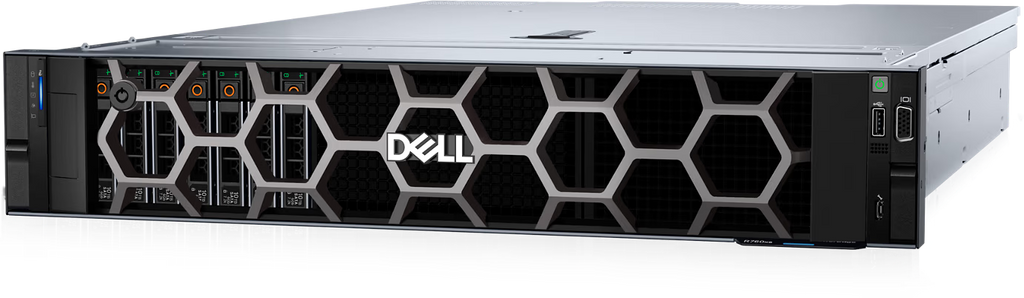

Dell PowerEdge R760xs (2X16 Core Silver) Rack Server


Price:
Sale price

Description

Processor
2xIntel® Xeon® Silver 4514Y 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400
Chassis Type 2.5" Chassis with up to 8/16 SAS/SATA Drives
Memory
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
HardDisk
2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
Raid Controller PERC, H965i with rear load bracket
Motherboard
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
Network Card
Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile
Embedded Systems Management iDRAC9, Enterprise 16G
Power Supply
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
PCIe Riser
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
Warranty 3 years ProSupport

Features of Dell PowerEdge R760xs (2X16 Core Silver) Rack Server

The Dell PowerEdge R760xs rack server equipped with two 16-core Intel Xeon Silver processors offers a blend of performance, scalability, and reliability suitable for a variety of enterprise applications. Here are the key features:

Processor and Performance

  • Processor: Two 16-core Intel Xeon Silver processors.
  • Cores and Threads: 32 cores and 64 threads in total.
  • Clock Speed: Varies depending on the specific Intel Xeon Silver model, generally around 2.1-2.9 GHz.
  • Cache: Approximately 22 MB to 24 MB L3 cache per processor.

Memory

  • Memory Capacity: Supports up to 8TB of DDR4 or DDR5 memory.
  • Memory Slots: 16 DIMM slots.
  • Memory Speed: Up to 3200 MT/s with DDR4 and higher speeds with DDR5.

Storage

  • Storage Options: Supports a mix of NVMe, SAS, and SATA drives.
  • Drive Bays: Up to 12 x 3.5" or 24 x 2.5" drive bays, depending on the chassis configuration.
  • RAID Support: Hardware RAID options available with PERC (PowerEdge RAID Controller).

Networking

  • Integrated Network Ports: Typically includes dual 1GbE or dual 10GbE ports.
  • Expansion: Additional networking capabilities via PCIe slots for network adapters.

I/O and Expansion

  • PCIe Slots: Multiple PCIe 4.0 or 5.0 slots for expansion cards.
  • USB Ports: Several USB 3.0 and USB 2.0 ports for peripheral connectivity.
  • Other Ports: VGA, serial, and dedicated iDRAC direct USB for management.

Management

  • iDRAC9: Integrated Dell Remote Access Controller for out-of-band management.
  • Lifecycle Controller: For simplified management and deployment.
  • OpenManage: Suite of systems management tools for monitoring and managing the server.

Power and Cooling

  • Power Supply Units: Redundant, hot-plug power supplies available in various wattages (e.g., 495W, 750W, 1100W).
  • Cooling: Advanced thermal management features to optimize cooling efficiency.

Security

  • TPM 2.0: Trusted Platform Module for hardware-based security.
  • Secure Boot: Ensures that only trusted firmware and OS are loaded.
  • System Lockdown: Helps prevent unauthorized changes to the server configuration.

What is the Price of  Dell PowerEdge R760xs (2x16 Core Silver) Rack Server in Bangladesh?

To know the latest price of Dell PowerEdge R760xs (2x16 Core Silver) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
