Description
| Processor |
2x Intel® Xeon® Gold 5415+ 2.9G, 8C/16T, 16GT/s, 22.5M Cache, Turbo, HT (150W) DDR5-4400
|
| Chassis Type | 2.5" Chassis with up to 8/16 SAS/SATA Drives |
| Memory |
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
|
| HardDisk |
2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD, 6X 1.92TB SSD vSAS Read Intensive 12Gbps 512e 2.5in Hot-Plug ,AG Drive SED, 1DWPD
|
| Raid Controller | PERC, H965i with rear load bracket |
| Motherboard |
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
|
| Network Card | Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile |
| Embedded Systems Management | iDRAC9, Enterprise 16G |
| Power Supply |
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
|
| PCIe Riser |
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
|
| Warranty | 3 years ProSupport |

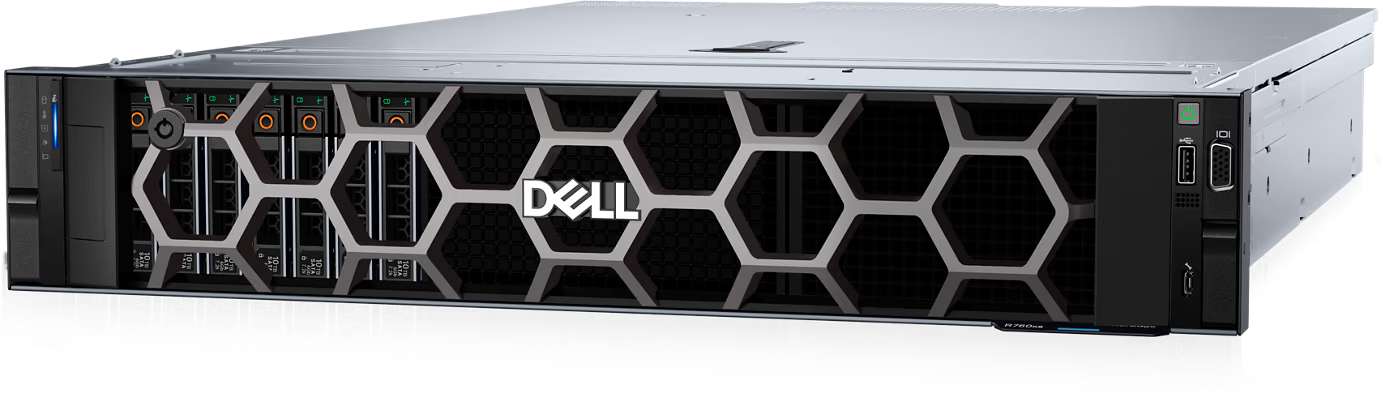

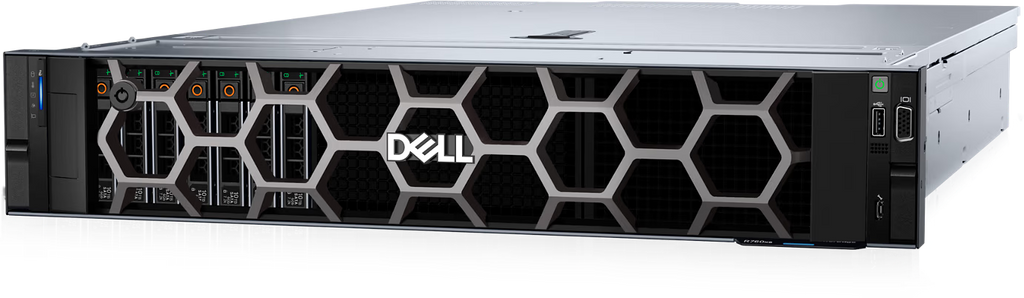

Features of Dell PowerEdge R760xs (2X8 Core Gold) Rack Server
The Dell PowerEdge R760xs Rack Server with 2x 8-core Intel Xeon Gold processors offers a robust set of features for enterprise applications. Here are the detailed features:
Processor
- Processor Model: 2x Intel Xeon Gold 5218R (or similar)
- Cores per Processor: 8 cores
- Total Cores: 16 cores
- Threads per Processor: 16 threads
- Total Threads: 32 threads
- Base Frequency: Typically around 2.1 GHz (specific model-dependent)
- Max Turbo Frequency: Up to 4.0 GHz (specific model-dependent)
- Cache: 16.5 MB L3 cache per processor
Memory
- Type: DDR4 ECC memory
- Capacity: Up to 3 TB with 24 DIMM slots
- Speed: Up to 3200 MT/s
Storage
-
Drive Bays:
- Up to 16 x 2.5" SAS/SATA (HDD/SSD)
- Up to 8 x 3.5" SAS/SATA (HDD)
- Support for NVMe drives for higher performance
- RAID: Support via PERC H745 or H755 controllers
Network
- Embedded Network Ports: 2 x 1GbE LOM (LAN on Motherboard)
-
Optional Network Options:
- 10GbE or 25GbE network cards available via PCIe slots
- OCP 3.0 mezzanine options for additional network flexibility
Expansion Slots
- PCIe: Up to 8 PCIe 4.0 slots for additional network, storage, or accelerator cards
Power Supply
- Redundancy: Hot-plug redundant power supplies
- Efficiency: 80 PLUS Platinum or Titanium efficiency options
- Power Options: Multiple power supply options (495W, 750W, 1100W, 1600W)
Management
- iDRAC9: Dell Remote Access Controller 9 for advanced remote management
- OpenManage: Dell EMC OpenManage systems management integration
- Quick Sync 2: Wireless module for out-of-band management
Security
- TPM: Trusted Platform Module (TPM) 2.0
- Secure Boot: UEFI Secure Boot support
- System Lockdown: Protects the system from unauthorized changes
- Secure Erase: Allows for secure deletion of data
Form Factor
- Rack Units: 2U
-
Dimensions:
- Height: 87.3 mm (3.44 in)
- Width: 482 mm (18.98 in)
- Depth: 784.2 mm (30.88 in) depending on configuration
Additional Features
- Cooling: Advanced thermal management with multiple fan options
- Virtualization: Full support for major virtualization platforms (VMware, Hyper-V, etc.)
- Workload Optimization: Optimized for a range of workloads including databases, ERP, CRM, and virtualization
