Description
Processor |
2x Intel® Xeon® Silver 4509Y 2.6G, 8C/16T, 16GT/s, 23M Cache, Turbo, HT (125W) DDR5-4400
|
Chassis Type | 2.5" Chassis with up to 8/16 SAS/SATA Drives |
Memory |
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
|
HardDisk | 2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD, 6X 2.4TB 10K RPM Self-Encrypting SAS 12Gbps 512e 2.5in Hot-plug Hard Drive |
Raid Controller | PERC, H965i with rear load bracket |
Motherboard |
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
|
Network Card | Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile |
Embedded Systems Management | iDRAC9, Enterprise 16G |
Power Supply |
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
|
PCIe Riser |
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
|
Warranty | 3 years ProSupport |

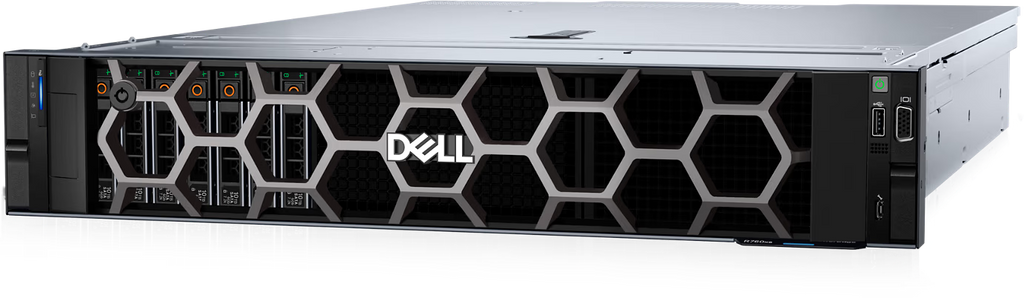

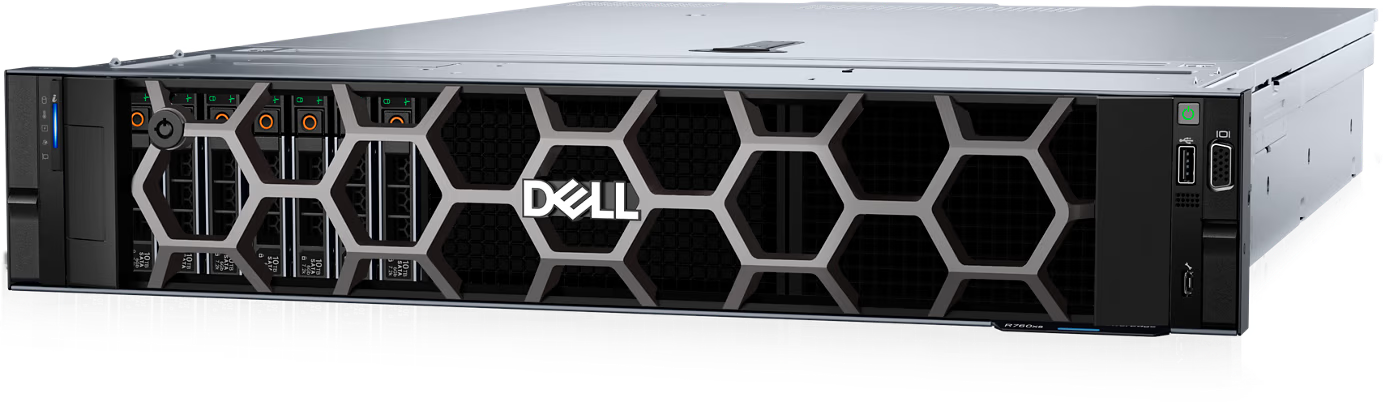

Features of Dell PowerEdge R760xs (2X8 Core Silver) Rack Server
The Dell PowerEdge R760xs is a powerful and versatile server designed for a variety of enterprise applications. Here are the key features of the Dell PowerEdge R760xs with two 8-core Intel Xeon Silver processors:
Processor
- CPU: 2x Intel Xeon Silver processors
- Cores: Each processor has 8 cores, making a total of 16 cores
- Threads: Each processor supports Hyper-Threading, resulting in 16 threads per processor and 32 threads in total
Memory
- RAM Capacity: Supports up to 4TB of DDR5 memory
- Memory Slots: Up to 32 DIMM slots
- Memory Speed: Up to 4800 MT/s
Storage
- Drive Bays: Supports up to 12 x 3.5” or 24 x 2.5” hot-plug SAS/SATA/NVMe drives
- RAID: Various RAID options available through the Dell PERC controllers
Networking
- Embedded NIC: Multiple options including dual-port 1GbE, dual-port 10GbE, or quad-port 10GbE
- Expansion Slots: Multiple PCIe 5.0 slots for additional network cards, storage controllers, or GPUs
Management
- iDRAC: Integrated Dell Remote Access Controller (iDRAC) 9 with Lifecycle Controller
- OpenManage: Dell OpenManage systems management portfolio
Power and Cooling
- Power Supplies: Redundant hot-plug power supply options ranging from 495W to 2400W
- Cooling: Advanced thermal design with multiple cooling options, including standard and high-performance fans
Security
- Security Features: Includes TPM 2.0, Secure Boot, System Lockdown, and Secure Erase
Form Factor
- Rack Unit: 2U rack server
What is the Price of Dell PowerEdge R760xs (2X8 Core Silver) Rack Server in Bangladesh?
To know the latest price of Dell PowerEdge R760xs (2X8 Core Silver) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
