Description
| Form Factor |
4U air-cooled rack server DellDell
|
| Processors |
Dual Intel Xeon 6-series CPUs, each up to 86 cores DellDellStorageReview.com
|
| Memory |
Up to 32 DDR5 RDIMM slots, up to 3 TB (future 128 GB DIMMs support up to 4 TB); Speed up to 6400 MT/s DellDell
|
| Accelerators/PCIe |
Supports up to 8 double-wide PCIe Gen5 x16 slots (up to 600 W each) or up to 16 single-wide PCIe Gen5 x16 slots (up to 75 W each); plus 8 additional rear/front slots for high-performance networking Dell+1StorageReview.com
|
| Storage |
Front supports up to 8 × EDSFF E3.S Gen5 NVMe drives (max ~122.88 TB); includes BOSS-N1 DC-MHS boot module (RAID 1 with dual M.2 NVMe SSDs) DellDell
|
| Power Supply |
Redundant hot-swap PSUs: 3200 W Titanium (200–240 V AC) or 2900 W (200–220 V AC); supports both AC and DC environments DellHSSL Technologies
|
| Cooling / Fans |
Four high-performance dual-fan modules (mid-tray) and twelve front platinum-grade fans, all hot-swap capable Dell
|
| Networking / I/O |
Rear: 1 × OCP 3.0 (x8 PCIe lanes), 1 × dedicated iDRAC/BMC Ethernet, 2 × USB 3.1 Type-A, 1 × VGA; Front: optional USB 2.0, Mini-DisplayPort, USB-C (Host/iDRAC Direct) DellHSSL Technologies
|
| Security & Management |
iDRAC with features like Secure Boot, signed firmware, TPM 2.0, chassis intrusion detection, silicon root of trust, secure erase, system lockdown (with iDRAC10) Dell+1
|
| Rack Specs |
Height: 174.3 mm (6.86 in); Width: 482 mm (18.98 in); Depth: ~899.6 mm (35.4 in) with bezel; Weight: ~71.35 kg (157.3 lb) Dell
|
Features of Dell PowerEdge XE7740 Rack Server

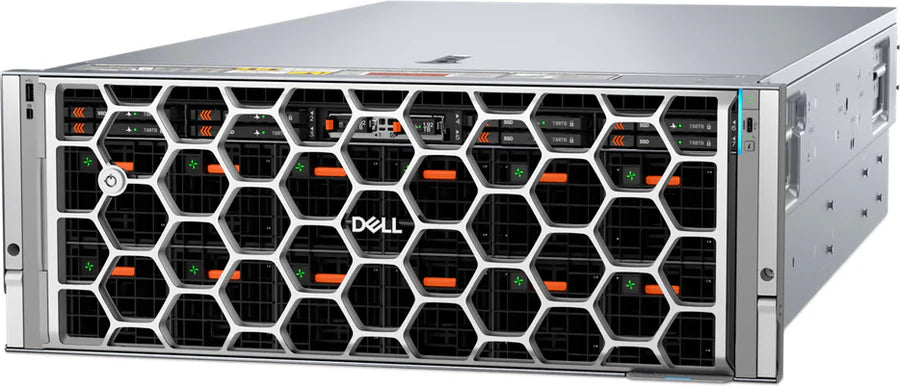

Dell PowerEdge XE7740 is a high-performance 4U rack server with dual Intel Xeon 6-series CPUs, DDR5 memory, PCIe Gen5 GPUs, and scalable NVMe storage—built for AI, HPC, and demanding workloads.
1. Processor:
-
CPUs: Dual Intel Xeon 6-series processors
-
Cores: Up to 86 cores per processor (max 172 cores total)
-
Threads: Up to 344 threads total (depends on CPU model)
-
Cache: Large L3 cache per CPU (size varies by model)
-
Clock Speed: High base and turbo frequencies (model dependent)
2. Memory:
-
Capacity: Up to 3TB DDR5 (future support up to 4TB with 128GB DIMMs)
-
Memory Type: DDR5 RDIMMs
-
Memory Channels: 8 channels per processor
-
Speed: Up to 6400 MT/s
3. Storage:
-
Drive Bays:
-
Up to 8 × EDSFF E3.S Gen5 NVMe SSDs (≈122TB max)
-
BOSS-N1 with dual M.2 NVMe (RAID1) for OS boot
-
-
RAID Options: Hardware and software RAID support (RAID 0, 1, 5, 6, 10, 50, 60)
-
Storage Controllers: PERC options including H755/H755N, or S150 for software RAID
4. Networking:
-
Embedded NIC: 1 × iDRAC dedicated Ethernet port
-
Optional NICs: OCP 3.0 slot supporting 10GbE / 25GbE / 100GbE adapters
-
I/O Ports: Front USB-C, Mini-DisplayPort; Rear USB, VGA, OCP NIC
5. Expansion:
-
PCIe Slots:
-
Up to 8 × double-wide PCIe Gen5 (up to 600W each) or
-
Up to 16 × single-wide PCIe Gen5 accelerators (up to 75W each)
-
-
GPU Support: NVIDIA GPUs for AI, HPC, ML, and inferencing workloads
6. Management and Security:
-
iDRAC10: Integrated Dell Remote Access Controller with Lifecycle Controller
-
OpenManage Enterprise: Centralized monitoring and management
-
Security Features:
-
TPM 2.0
-
Secure Boot, System Lockdown
-
Silicon Root of Trust
-
Chassis intrusion detection & Secure Erase
-
7. Power and Cooling:
-
Power Supplies: Hot-plug redundant PSU options, up to 3200W Titanium
-
Cooling: Hot-swap fan modules with advanced thermal efficiency
8. Form Factor:
-
Chassis: 4U rack-mount server
-
Dimensions: 174.3 mm (H) × 482 mm (W) × 899.6 mm (D)
-
Weight: ~71 kg (fully configured)
9. Operating System Support:
-
Microsoft Windows Server
-
Red Hat Enterprise Linux (RHEL)
-
SUSE Linux Enterprise Server (SLES)
-
VMware vSphere / ESXi
-
Other major Linux distributions
What is the Price of Dell PowerEdge XE7740 Rack Server in Bangladesh?
To know the latest price of Dell PowerEdge XE7740 Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD
