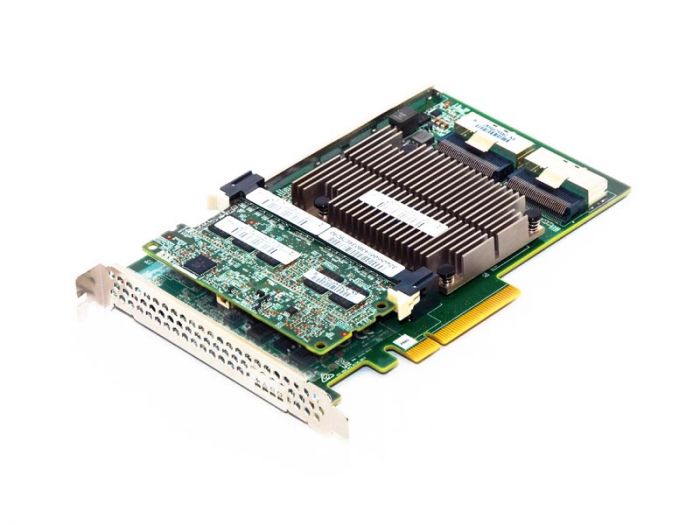

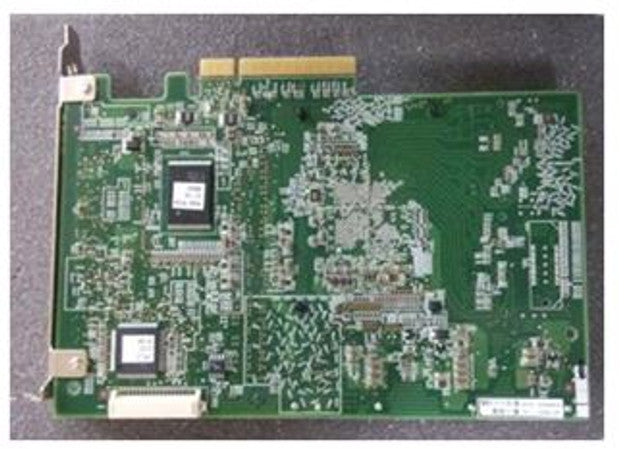

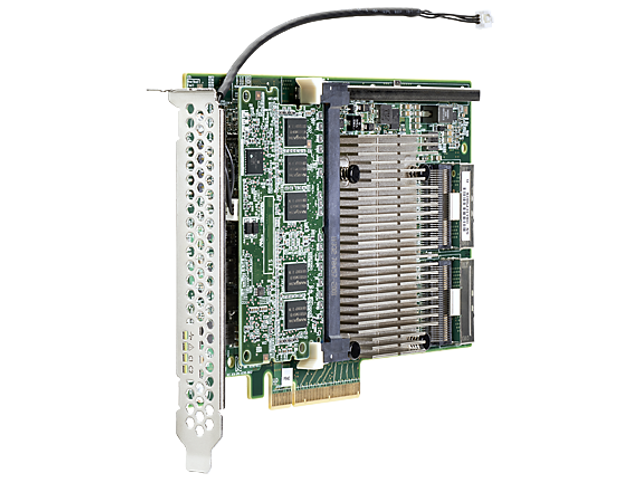

HPE 761880-001 Smart Array P840 12Gbps PCIE 2-Port SCSI RAID Controller Card

Sale price


Device Type
Storage Controller (RAID) - Plug-in Car
Interface SATA-6Gbps / SAS-12Gbps
Data Transfer Rate 1.2 GBps
Supported Devices Disk array (RAID)
RAID Level
OS Required
Microsoft Windows Server 2008 R2, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Max Storage Devices Qty 16
Buffer Size 4 GB
Dimensions & Weight Depth: 6.60 inch
Height: 4.40 inch
Width: 0.60 inch
Option Part Number 766205-B21
Spare Part Number
761880-001 (No Battery - No Cable)
Warranty 06 Month

Features of HPE 761880-001 Smart Array P840 12Gbps PCIE 2-Port SCSI RAID Controller Card

The HPE 761880-001 Smart Array P840 is a high-performance PCIe RAID controller card designed for enterprise-level storage solutions. Here are some key features and details about this controller card:

  1. Interface: The Smart Array P840 utilizes the PCIe (Peripheral Component Interconnect Express) interface, specifically PCIe 3.0 x8, to provide high-speed connectivity with the server or storage system.

  2. RAID Support: It supports various RAID configurations, including RAID levels 0, 1, 10, 5, 50, 6, and 60, allowing for different combinations of performance, data redundancy, and capacity.

  3. SAS Compatibility: The P840 controller card supports SAS (Serial Attached SCSI) drives, which are widely used in enterprise storage environments. It is backward compatible with SAS 12Gbps, 6Gbps, and 3Gbps drives.

  4. Port Configuration: It features two SAS/SATA (Serial ATA) ports that allow for connectivity to SAS or SATA drives. These ports support data transfer rates of up to 12Gbps, enabling high-speed data access and transfer.

  5. Cache Memory: The P840 includes a built-in cache memory module for improved performance. It supports up to 4GB or 8GB of flash-backed write cache (FBWC) or battery-backed write cache (BBWC), which helps protect data during power loss and enhances write performance.

  6. Advanced Management: The Smart Array P840 offers advanced management and monitoring capabilities through its management software, such as HPE Smart Storage Administrator (SSA) and HPE Integrated Lights-Out (iLO). These tools provide administrators with configuration, monitoring, and diagnostic features.

  7. Compatibility: It is designed for HPE ProLiant Gen9 and Gen10 servers, as well as HPE Synergy compute modules. It may not be compatible with non-HPE systems, so it's important to check compatibility before purchase.

  8. Performance and Scalability: The P840 delivers high performance and scalability, allowing for the expansion of storage capacity as business needs grow. It supports up to 16 drives natively, but additional expansion can be achieved using HPE SAS expanders.

  9. RAID Controller Card: As a RAID controller card, the P840 offloads the RAID processing from the server's CPU, improving overall system performance and providing hardware-level data protection.

It's worth noting that this information is based on the knowledge available up to September 2021, and there may have been newer versions or revisions of the HPE Smart Array P840 released since then. To get the most accurate and up-to-date information, it's recommended to refer to the official HPE documentation or contact HPE directly.

What is the price of HPE 761880-001 Smart Array P840 12Gbps PCIE 2-Port SCSI RAID Controller Card in Bangladesh?

To know the latest price of HPE 761880-001 Smart Array P840 12Gbps PCIE 2-Port SCSI RAID Controller Card in Bangladesh contact with us .To buy this HPE 1.2TB 10K RPM SAS 2.5 INCH SFF 12G Enterprise 512n Server HDD please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
