Description
| Brand | HP Enterprise |
| Model |

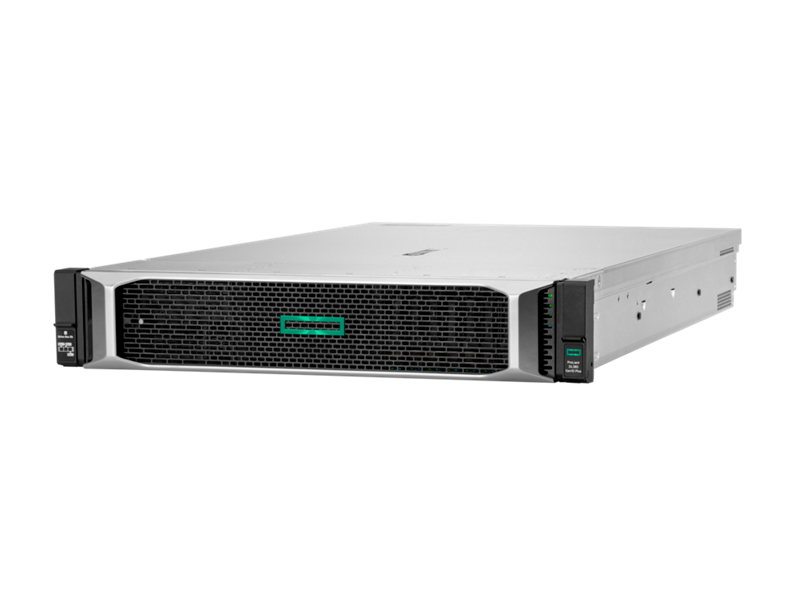

HPE DL380 Gen10 Plus CTO Server
|
| Country of Origin | USA |
| Country of Manufacture | Singapore |
| Processor |
2 x Intel Xeon-Silver 4314 2.4GHz 16-core 135W Processor for HPE
|
| Chipset |
Intel C621A Chipset
|
| Memory (RAM) |
64GB (2 x 32GB ) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
|
| Hard Disk Drive |
4 X HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
|
| Cache Memory | 24 MB L3 Cache |
| Storage Controller |
Broadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus
|
| Storage Battery and Cable |
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
|
| Riser Kit |
HPE ProLiant DL380 Gen10 Plus x8/x16/x8 Primary FIO Riser Kit
|
| Network Interface Card |
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
|
| Graphics |
Video modes up to 1920 x 1200@60Hz (32 bpp) 16MB Video Memory
|
| Power Supply |
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
|
| System Fan(s) |
Hot-plug fans, 4 with single Processor and 6 with dual processor
|
| Expansion Slots |
Up to 8 PCIe slots
|
| Media Bays |
Standard: 8 SFF SAS/SATA HDD Bays; Upgradable up to 16 or 24 SFF SAS/SATA HDD
|
| Interfaces |
Serial: Optional, rear . Display Port: 1 optional front display port via Universal Media Bay.VGA: 1 standard, rear for all chassis. Network Ports : 4 x 1GbE embedded . HPE iLO Remote Management Network Port : 1 Gb Dedicated Rear. Front iLO Service Port : 1 standard . Micro SD Slot : Optional via HPE 32GB microSD RAID1 USB Boot Device . USB 3.0 : Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis . SID (Systems Insight Display) : Optional
|
| Remote Management |
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
|
| OS Support |
3rd Generation Intel® Xeon® Scalable Processor Family
Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2016 & 2019 VMware vSphere 6.7 U3 w/P03, 7.0 U2 Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 - Includes KVM SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM) Ubuntu 20.04 LTS Oracle Linux 7.9 (UEK5 and UEK6) |
|
Security
|
Secure Boot and Secure Start enable for enhanced security
|
|
Embedded UEFI Shell
|
|
|
Operating system specific functionality
|
|
|
Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
|
|
|
Support for > 2.2 TB (using GPT) boot drives
|
|
|
PXE boot support for IPv6 networks
|
|
| USB 3.0 Stack | |
|
Workload Profiles for simple performance optimization
|
|
|
UEFI Boot Mode only:
|
|
|
TPM 2.0 Support
|
|
|
iSCSI Software Initiator Support.
|
|
|
NVMe Boot Support
|
|
|
HTTP/HTTPs Boot support as a PXE alternative.
|
|
|
Platform Trust Technology (PTT) can be enabled.
|
|
|
Boot support for option cards that only support a UEFI option ROM
|
|
| Industry Standard Compliance |
ACPI 6.3 Compliant , PCIe 4.0 Compliant , WOL Support Microsoft® Logo certifications , PXE Support
VGA/Display Port, USB 3.0 Compliant (internal) USB 2.0 Compliant (external ports via SUV), Energy Star SMBIOS 3.2,Redfish API , IPMI 2.0 , Secure Digital 4.0 , TPM 1.20 and 2.0 Support , Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES) , SNMP v3 , TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), Active Directory v1.0, ASHRAE A3/A4, EU Lot9, UEFI (Unified Extensible Firmware Interface Forum) 2.6, |
| Form Factor |
2U Rack form factor, Easy Install rail kit.
|
| Warranty |
HPE 3Y Tech Care Basic Service
|
Features of HPE Proliant DL380 G10 Plus Intel Xeon-Silver 4314 2x16c CTO Server
-
HPE Proliant DL380 Series: The HPE Proliant DL380 series is known for its high-performance, reliability, and scalability. These servers are designed for a wide range of workloads, including virtualization, database, cloud, and more. They come in various configurations to meet different business needs.
-
Intel Xeon Silver 4314 Processor:
- Processor Type: The Intel Xeon Silver 4314 is part of the Intel Xeon Scalable family of processors, designed for data center and enterprise applications.
- Number of Cores: The "2x16c" in your configuration suggests that it has two Intel Xeon Silver 4314 processors, each with 16 cores. So, in total, you have 32 CPU cores.
- Clock Speed: The specific clock speeds may vary, but Xeon Silver processors typically have base clock speeds and can turbo boost to higher speeds as needed.
- Cache: Intel Xeon processors come with various levels of cache, including L1, L2, and L3 cache to improve data access times.
-
Customization Options: "CTO" typically stands for "Configure To Order," which means that this server can be customized to meet your specific requirements. You can choose various components such as memory, storage, network interfaces, and more based on your needs.
-
Memory: The amount of memory (RAM) you can install will depend on the server's configuration and your customization choices. HPE Proliant DL380 servers usually support a wide range of memory capacities and types.
-
Storage: The server can be configured with different storage options, including hard drives (HDDs) and solid-state drives (SSDs) in various RAID configurations to meet your storage needs.
-
Networking: The server should support various networking options, including multiple Gigabit Ethernet ports or higher-speed options.
-
Management and Security: HPE Proliant servers typically come with management and security features like iLO (Integrated Lights-Out) for remote management and security features to protect your data and infrastructure.
-
Expansion Slots: The server may offer PCIe expansion slots for adding additional hardware components such as graphics cards or specialized adapters.
-
Redundancy and Reliability: HPE Proliant servers are known for their redundancy features, including redundant power supplies and cooling fans, to ensure high availability.
What is the Price of HPE Proliant DL380 G10 Plus Intel Xeon-Silver 4314 2x16c CTO Server in Bangladesh?
To know The latest price of HPE Proliant DL380 G10 Plus Intel Xeon-Silver 4314 2x16c CTO Server in Bangladesh Contact With Us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
