Description
Usage | ACI leaf, top of rack, end of row |
Form factor | 2 RU |
Throughput (Tbps) | 2.4 |
100 M/ 1 GE/ 10 GE copper ports | 96 |
10/25 GE ports | |
40 GE ports | 6 |
100 GE ports | No |
Latency (microseconds) | ~4 |
Buffer (MB) | 52 |
Power supply (watts); 2 per switch | 1200 |
Typical power (watts) | 542 |
Minimum software version | NXOS-703I2.2A/ACI-N9KDK9-11.2 |
Orderable | Yes |
SKU | N9K-C93120TX |
Operating System | NX-OS, ACI |
Features of Nexus 93120TX Switch
The Cisco Nexus 93120TX is a powerful switch designed for both 3-tier and spine-leaf architectures in data centers. Let’s explore its key features and capabilities:
High Port Density:

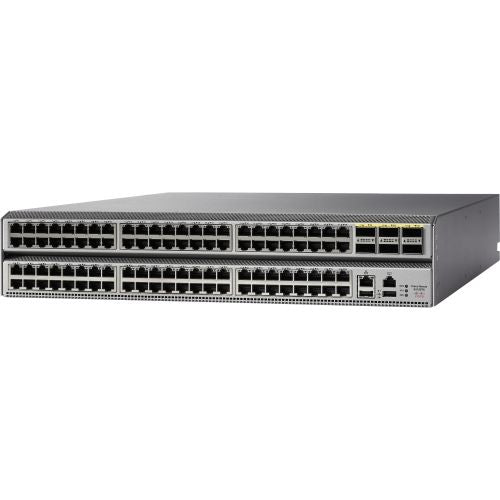

The Nexus 93120TX offers 96 fixed 10-Gbps BASE-T ports (copper) and 6 x 40 Gigabit Ethernet uplinks (QSFP+ optical) on the front panel.
These front-panel ports can operate at speeds of 100 Mbps, 1 Gbps, and 10 Gbps.
This flexibility makes it an excellent choice for migrating network access ports to 10 Gigabit Ethernet.
Performance and Scalability:
With all ports operating at line rate, the switch delivers a total throughput of 2.4 Tbps.
Its 1RU (2-rack-unit) form factor ensures efficient use of space in your data center.
Architectural Flexibility:
The Nexus 93120TX can be deployed as a top-of-rack or middle-of-row copper-based server access switch.
It also serves as a leaf node in a spine-leaf architecture, ensuring low-latency traffic flow and faster convergence during failures.
Feature-Rich:
The switch runs an enhanced version of Cisco NX-OS Software, optimized for performance, resiliency, scalability, manageability, and programmability.
It is ACI-ready, allowing for an automated, policy-based management approach.
Supports virtual extensible LAN (VXLAN) routing.
Comes with an additional 25-MB buffer, surpassing competing switch offerings.
High Availability and Efficiency:
Deployable in both hot-aisle and cold-aisle configurations.
Features redundant, hot-swappable power supplies (80 Plus Platinum-certified) and fan trays.
Power-On Autoprovisioning (POAP) simplifies software upgrades and configuration file installation.
An intelligent API enables switch management through remote procedure calls (RPCs) over HTTP/HTTPS infrastructure.
Python Scripting provides programmatic access to the switch CLI.
Supports hot and cold patching as well as online diagnostics.
Investment Protection:
Reuse existing 10 Gigabit Ethernet multimode cabling for 40 Gigabit Ethernet using a Cisco 40-Gbps bidirectional transceiver.
Supports access connectivity at 100 Mbps, 1 Gbps, and 10 Gbps for data centers migrating to faster speeds.
What is the price of Nexus 93120TX Switch in Bangladesh?
To know the latest price of Nexus 93120TX Switch in BD contact with us . To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
