Description
| CPU |
Annapurna Labs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
|
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| System Memory |
4 GB UDIMM DDR4 (1 x 4 GB)
|
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory |
512 MB (Dual boot OS protection)
|
| Drive Bay |
12 x 3.5-inch SATA 6Gb/s, 3Gb/s
|
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 Slot |
Optional via a PCIe adapter
|
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
| PCIe | 1 Slot 1: PCIe Gen 2 |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 2U Rackmount |
| LED Indicators |
HDD 1-12, Status, LAN, Storage expansion
|
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 89 × 482 × 534 mm |
| Weight (Net) | 11.34 kg |
| Weight (Gross) | 17.27 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
|
| Power Supply Unit |
250W (x2) PSU, 100 - 240V
|
| Power Consumption: Operating Mode, Typical | 83.57 W |
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
Features of QNAP TS-1232PXU-RP-4G

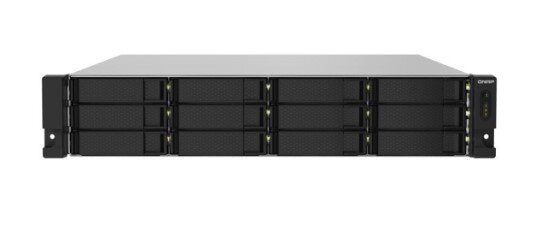

The QNAP TS-1232PXU-RP-4G is a network-attached storage (NAS) device manufactured by QNAP Systems. It is designed for small and medium-sized businesses that require a reliable and high-performance storage solution.
Here are some key features and specifications of the QNAP TS-1232PXU-RP-4G:
-
Hardware: The NAS is powered by an Annapurna Labs Alpine AL-324 quad-core 1.7 GHz processor and comes with 4 GB DDR4 RAM. It has two built-in 10GbE SFP+ ports and four Gigabit Ethernet ports for network connectivity.
-
Drive Bays: The TS-1232PXU-RP-4G supports up to 12 hot-swappable 3.5-inch or 2.5-inch SATA hard drives or solid-state drives (SSDs). It also supports SSD caching to accelerate data access.
-
Redundant Power Supply: The "RP" in the model name indicates that the NAS has a redundant power supply. It includes two power supply units, providing increased reliability and ensuring uninterrupted operation even if one power supply fails.
-
Expansion Options: The NAS supports expansion units for additional storage capacity. You can connect a QNAP expansion enclosure using the provided SAS expansion ports to increase the total number of drives.
-
Operating System: The TS-1232PXU-RP-4G runs on QNAP's operating system called QTS. QTS offers a user-friendly web-based interface and provides a wide range of applications and features for data management, backup, file sharing, virtualization, multimedia, and more.
-
High Availability (HA): The NAS supports high availability, allowing you to set up a secondary NAS as a standby to provide continuous data access and minimize downtime in case of hardware failure.
-
Security and Data Protection: The TS-1232PXU-RP-4G provides various security features, including AES 256-bit encryption for shared folders and volumes, IP blocking, antivirus, and more. It also supports various backup options such as local backup, remote replication, and cloud backup.
-
Virtualization Support: With support for VMware, Citrix, and Microsoft Hyper-V virtualization environments, the NAS can be used as a storage solution for virtual machines.
-
Other Features: The TS-1232PXU-RP-4G offers a range of additional features like container applications, surveillance station for video surveillance management, media streaming, centralized user management, and more.
What is the price of QNAP TS-1232PXU-RP-4G in Bangladesh?
To know the latest price of QNAP TS-1232PXU-RP-4G in bd contact with us .To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bd.
