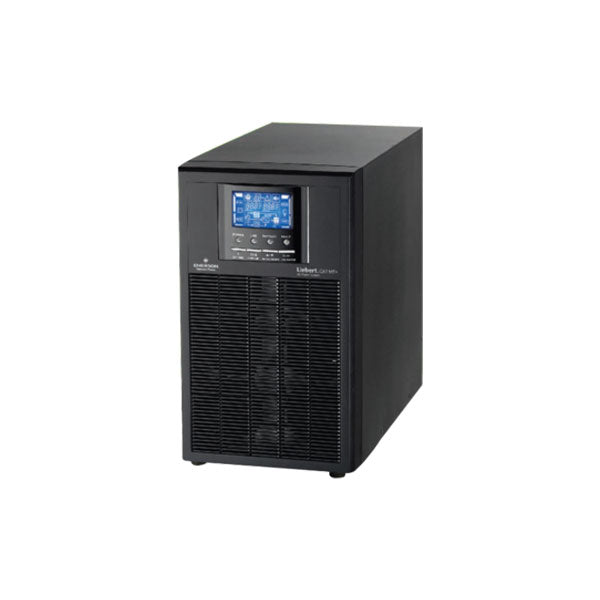

Vertiv Liebert GXT MT+ 10KVA Online UPS


Price:
Sale price

Description

Basic Information Brand: Vertiv
Country of Origin: USA
Model: Liebert GXT MT+
Communication and Management
Management software: Site Monitor
Interface type: USB/intelligent slot (SNMP card)(Excluding)
Environmental Information
Operating temperature: 0 – 40˚C
Relative humidity: 5-95% without condensation
Altitude: <1500m (when the altitude exceeds 1500m, derating is required according to GB/T3859.2)
System Standards
Conversion type: Online double conversion
Installation mode: Tower
System efficiency: >92%
Switching time (power failure): 0
Noise: <58dB
Language: Chinese/English
LCD display is available: Yes
Safety: IEC/EN62040-1-1
Electromagnetic capability: IEC/EN 62040-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/T1095-2008
Surge protection: IEC/EN 62040-2, meeting IEC/EN61000-4.5
Protection level: IP20
Battery
Charging capability: >6h for 90% re-charging of the standard model
Battery type: Lead-acid maintenance-free battery
Battery backup time: Standard backup
Battery brand: Leoch/Equivalent
Battery Qty: 12 V-12AH, 18 pcs
Battery Cabinet; External
Input
Rectifier type: IGBT rectifier
Rated voltage: 3×400 VAC (3Ph+N)
Input voltage range: 305-478 VAC (3-Phase)@100% load
Input frequency range: 45Hz-65Hz
Input power factor: >=0.99 for single phase/>0.95 for three-phase
Output
Rated power: 10kVA/8KW
Rated Voltage: 208**/220/230/240VAC
Voltage precision: ±1%
Frequency precision: 0.25%
Output mode: Terminal strip
Load crest factor: 3:1 (comply with IEC62040-3)
Step load performance: 100%
Overload performance (% of the rated load): 105% – 125% 5mins, 125% – 150% 1 mins, 500ms for over 150%
Physical Information
Dimensions (mm): 592 X 250 X 576
Warranty 1 Year Brand Warranty

Features of Vertiv Liebert GXT MT+ 10KVA Online UPS

The Vertiv Liebert GXT MT+ 10KVA is an online uninterruptible power supply (UPS) designed to provide reliable power protection for critical equipment. Here are some key features and specifications of the UPS:

  1. Capacity: The UPS has a capacity of 10 kilovolt-amperes (kVA) or 10,000 volt-amperes (VA), which indicates the maximum load it can support.

  2. Online Double Conversion: The Liebert GXT MT+ 10KVA is an online UPS, which means it provides continuous power protection by converting incoming AC power to DC power and then back to AC power.

  3. Advanced Protection: It offers advanced protection against a wide range of power disturbances, including power outages, voltage sags, surges, frequency variations, and harmonic distortions. This ensures that your critical equipment receives clean and stable power.

  4. Expandable Runtime: The UPS allows you to add external battery cabinets to extend the runtime during power outages. This feature is useful when you need your equipment to remain powered for an extended period.

  5. LCD Display: The UPS features an LCD display panel that provides real-time information about the status of the UPS, including input/output voltage, load level, battery level, and various alarms and notifications.

  6. Intelligent Battery Management: The Liebert GXT MT+ 10KVA incorporates intelligent battery management technology to maximize battery life and optimize performance. It performs periodic battery tests and provides early warnings when battery replacement is required.

  7. Communication and Management: The UPS offers multiple communication options, such as USB and RS-232 ports, allowing you to connect it to a computer or network for remote monitoring and management. It also supports SNMP (Simple Network Management Protocol) for integration with network management systems.

  8. Audible and Visual Alarms: The UPS features audible alarms and LED indicators to alert you of power events, battery status, and other UPS conditions.

  9. Compact Design: The Liebert GXT MT+ series UPS units are designed with a compact form factor, making them suitable for space-constrained environments.

What is the price of Vertiv Liebert GXT MT+ 10KVA Online UPS in Bangladesh?

To know the latest price of Vertiv Liebert GXT MT+ 10KVA Online UPS in Bangladesh contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in BD.
