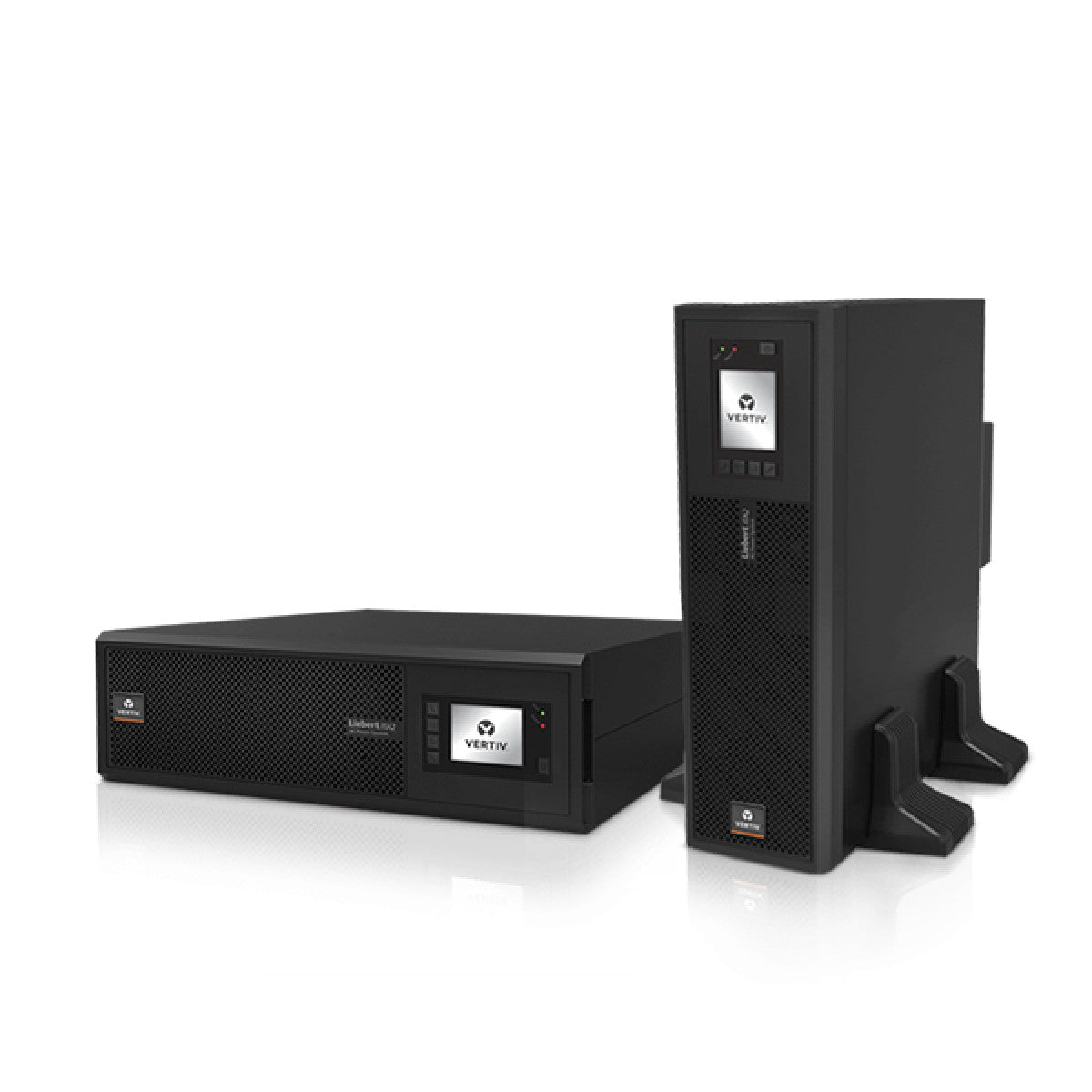

Vertiv Liebert ITA2 30KVA Online UPS

Sale price


Basic Information
Model: Liebert ITA 2
Capacity: 30 KVA (30000VA/30000W)
Power factor: 1(unity)
Rated Voltage: three-phase four wires 380/400/415Vac
General Information
Rectifier Type : IGBT Rectifier
Transfer Time: Zero
Waveform (Batt. Mode): Pure sine wave
Efficiency (AC Mode): Up to 91%
Over Load Performance : 105%-125%; 5 Mins, 125%-150%, 1 Min
Charging Current: 13A(long-run model)
Efficiency Up to 91% (AC Mode)
Input Frequency Range: 40 Hz-70 Hz
Output Three-phase 380/400/415Vac
Voltage Range
Input Voltage Range: Three-Phase 305Vac-478Vac
Output Voltage Range: Three-phase 380/400/415Vac
Battery Information
Battery type (Std.Back up) : 12 V, 26AH (External battery cabinet)
Battery type (Long Back up): Depending on the capacity of external batteries
Battery Quantity: 24/32/34/36/38/40(Selectable)
Protection Protection Level: IP 20
Battery Mode, Low Battery Overload Fault
Power management from SNMP manager(built-in) and web browser
Physical Information
Dimension (Long run model) : 430x570x130(3U)
Net weight: 23.5 Kg (Unit)
Warranty 1 year brand warranty

Features of Vertiv Liebert ITA2 30KVA Online UPS

The Vertiv Liebert ITA2 30KVA Online UPS is a high-performance uninterruptible power supply (UPS) system designed for critical power protection in data centers, server rooms, and other mission-critical applications. Here are some key features and details about the Vertiv Liebert ITA2 30KVA Online UPS:

  1. Power Capacity: The UPS has a power capacity of 30 kilovolt-amperes (kVA), which means it can deliver up to 30,000 volt-amperes of power to connected equipment.

  2. Online Double Conversion Technology: The ITA2 30KVA UPS utilizes online double conversion technology, which provides the highest level of power protection by continuously converting incoming AC power to DC power and then back to AC power. This ensures a stable and clean power supply to connected devices, regardless of the quality of the incoming utility power.

  3. Scalable Design: The UPS is designed to be scalable, allowing for easy expansion of the power capacity as the needs of the IT infrastructure grow. This scalability feature makes it suitable for businesses with changing power requirements.

  4. High Efficiency: The Liebert ITA2 30KVA UPS offers high energy efficiency, reducing energy consumption and operating costs. The online double conversion technology helps maintain a high level of efficiency even at low load levels.

  5. Advanced Battery Management: The UPS incorporates advanced battery management features to extend battery life and optimize performance. This includes battery charging algorithms, temperature compensation, and battery health monitoring.

  6. Intelligent Monitoring and Management: The ITA2 30KVA UPS supports advanced monitoring and management capabilities. It typically includes a built-in LCD display or a touchscreen interface for easy access to real-time status information and configuration options. Remote management options, such as SNMP (Simple Network Management Protocol) and web-based interfaces, may also be available.

  7. Redundancy and Fault Tolerance: The UPS is designed for high availability and fault tolerance. It may include features such as redundant components, hot-swappable batteries, and parallel operation capabilities to ensure uninterrupted power supply and minimize downtime.

  8. Protection Features: The Liebert ITA2 30KVA UPS provides protection against a wide range of power issues, including power surges, voltage sags, frequency variations, harmonic distortion, and power factor correction. These features help safeguard connected equipment from damage and ensure stable operation.

What is the price of Vertiv Liebert ITA2 30KVA Online UPS in Bangladesh?

To know the latest price of Vertiv Liebert ITA2 30KVA Online UPS in Bangladesh contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in BD.
